Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Features:
High Hardness, Wear Resistance, Good Thermal Conductivity
Product Name:
PCD End Mill
Application:
Aluminum Alloys Copper Components
Oem:
Yes
Overall Length:
50mm-150mm
Usage:
CNC Turning And Milling
Cutting Length:
10mm-50mm
Packing:
1ps/ Plastic Box
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

High Speed PCD End Mill

,

Aerospace Grade PCD End Mill

Product Description
Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm
Product Specifications
Attribute Value
Product name PCD End Mill
Application Aluminum Alloys Copper Components
OEM Yes
Overall Length 50mm-150mm
Usage CNC turning and milling
Features High Hardness, Wear Resistance, Good Thermal Conductivity
Cutting Length 10mm-50mm
Packing 1ps/ Plastic Box
Product Overview

Our aerospace-grade PCD (Polycrystalline Diamond) 1-flute end mill is engineered for ultra-high-speed machining of aluminum alloys (2024, 6061, 7075) and copper components (C11000, C17200). Designed to meet AS9100 aerospace standards, this single-flute diamond cutter delivers exceptional tool life (50-100X longer than carbide) while producing mirror-like surface finishes (Ra 0.1-0.4 μm) in demanding CNC applications.

Key Features
  • Premium PCD Construction
    - 2-25 μm diamond particles (DA100/DA150 grade) for extreme wear resistance
    - Brazed to carbide body for maximum rigidity
  • Aerospace-Optimized Geometry
    - 1-flute design maximizes chip evacuation in gummy materials
    - High rake angle (12-15°) reduces cutting forces
    - Polished flutes prevent material adhesion
  • High-Speed Performance
    - Stable at 20,000-50,000 RPM (diameter-dependent)
    - Dry machining capable - no coolant required
  • Material-Specific Engineering
    - Aluminum version: Sharp edge + nano-polish for BUE prevention
    - Copper version: Special edge prep for stringy chip control
Performance Advantages
▶ 100X Tool Life vs carbide in 7075-T6 aluminum
▶ 40% Higher Feed Rates possible vs 2-flute end mills
▶ ± 0.005mm Dimensional Accuracy maintained over lifespan
▶ Eliminates Secondary Polishing - achieves final finish in one pass
Typical Applications
  • Structural Components
    - Wing rib slots in 2024-T3 aluminum
    - Lightweight fuselage parts
  • Propulsion Systems
    - Heat exchanger channels in C17200 beryllium copper
    - Fuel nozzle precision features
  • Electronics Thermal Management
    - High-power device heatsinks
    - RF waveguide cavities
Product Images

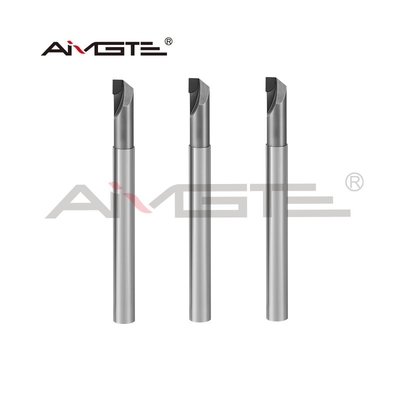

Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm 0
Our Manufacturing Facility

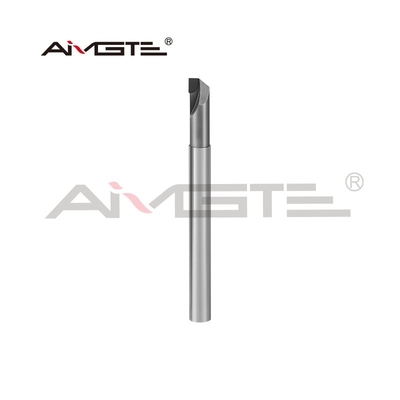

Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm 1

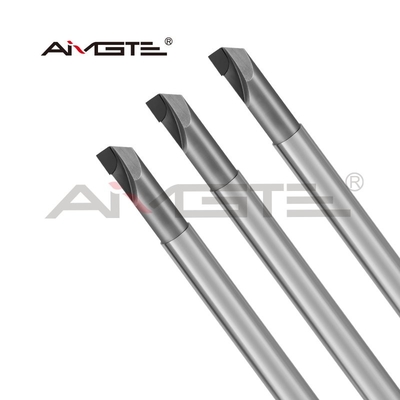

Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm 2
New Customer Special Offers

To help you experience our premium products, we're excited to offer the following exclusive promotions for first-time buyers:

1. Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.

2. $50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!

Our Manufacturing Advantages
1.
Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.
2.
Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. for inspecting each carbide tool.
3.
Fast feedback: We offer 24 hours online service.
4.
Strict quality control system:
We strictly adhere to a three-stage inspection process for each tool:
- Raw material inspection
- Semi-finished product inspection after production
- Final inspection after coating (pre-shipment check)
Related Products

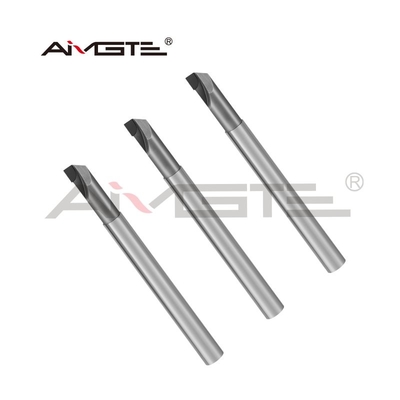

Aerospace Grade PCD End Mill High Speed 1 Flute 50mm - 150mm 3
