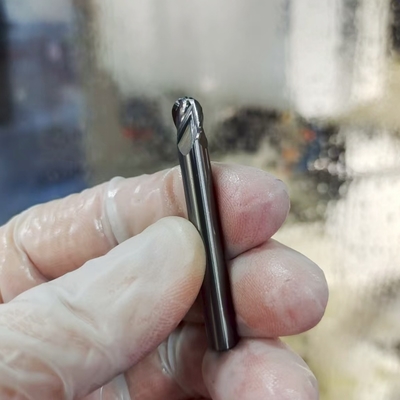

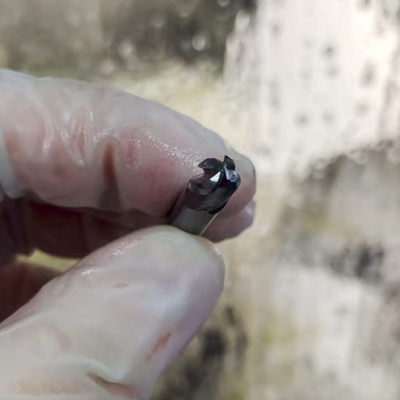

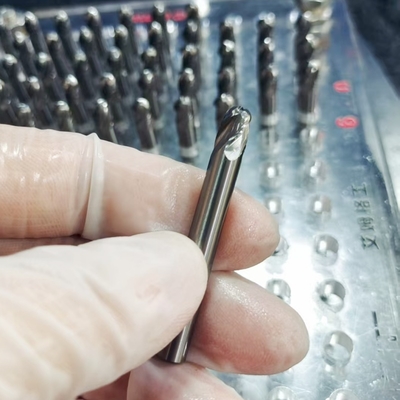

AMG D6R3 Carbide Ball Nose End Mill 6mm Diameter

Brand Name:	AMG
Model Number:	AMG Stable Ball Nose End Mill

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Highlight:

6mm carbide ball nose end mill

D6R3 carbide drill bit

carbide end mill with warranty

Product Description

Achieve Superior Surface Finish with a Stable Ball Nose End Mill

AMG ball cutter D6R3 - a powerful tool for improving the efficiency of mold cavity processing. In the mold manufacturing industry, cavity structures often have complex surfaces and high precision requirements, which place higher demands on the geometric accuracy, surface quality, and stability of cutting tools. The ball end mill D6R3 launched by AMG has become the preferred tool for many mold factories in precision machining due to its stable cutting performance and excellent smoothness performance.

Specifications

Model	Cutting Diameter (mm)	Ball Radius (R)	Shank Diameter (mm)	Overall Length (mm)	Flute Length (mm)	Coating	Material
D6R3	6	3	6	50	12	AlTiSiN / DLC	Carbide

Customer Selection Guide for Ball Knife D6R3

When choosing ball end mills, customers often face multiple parameter and application scenario choices. The AMG ball cutter D6R3 is a precision machining tool that balances high smoothness and stability, particularly suitable for complex surface processing in industries such as molds, medical, and aviation.

Key Selection Considerations:

Processing Materials:
Mold steel, alloy steel, stainless steel → Recommended AlTiSiN coating for strong heat resistance and wear resistance
Aluminum alloy, copper, and other soft metals or plastics → Recommended DLC coating for anti-sticking and high smoothness
Processing Location and Purpose:
3D surface, cavity, groove area refinement → D6R3 is an ideal choice
High surface quality or pre-polishing process → Selecting fine blade and mirror coating versions can further enhance the effect
Complex structures requiring vibration reduction → Customization available for strengthened handle diameter or shortened blade length
Equipment Matching:
Confirm spindle speed meets high-speed cutting requirements (recommended ≥ 20000rpm)
Verify clamping system compatibility (6mm shank diameter)
Customization Options:
AMG supports on-demand customization of tool geometry and parameters including:
- Ball head radius (R1~R6)
- Blade length, total length
- Coating type
- Shank diameter (3mm, 6mm, 8mm available)
