PCD Milling Cutter
>
High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized

High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
PCD Milling Cutter
Material:
DA150 (or Custom)
Application:
Aluminium
Oem:
Yes
Flute Length:
Varies By Size
Size:
Various Sizes Available
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

High Speed PCD Milling Cutter

,

Aerospace Grade PCD Milling Cutter

,

Customized PCD Milling Cutter

Product Description
High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized
Product Specifications
Attribute Value
Product name PCD Milling Cutter
Material DA150 (or custom)
Application Aluminium
Oem Yes
Flute Length Varies by size
Size Various sizes available
Product Overview

Aerospace PCD End Mill 2 Flutes For Aluminum Alloys Carbon Fiber CNC High Speed Machining

Our 2-Flute PCD (Polycrystalline Diamond) End Mill is engineered specifically for aerospace machining applications requiring exceptional tool life and superior surface finishes. Designed to excel in high-speed CNC machining of aluminum alloys (2000/7000 series) and carbon fiber composites (CFRP), this cutter delivers 50-100x longer life than carbide tools while maintaining micron-level precision even in aggressive cutting conditions.

Key Features
  • Premium PCD Cutting Edges
    • Diamond particle size: 2-25 μm for optimal wear resistance
    • Brazed to carbide body for maximum structural integrity
  • Aerospace-Optimized Geometry
    • 2-flute design balances chip evacuation and surface finish
    • High helix angle (40-45°) reduces cutting forces in aluminum
    • Polished flutes prevent material adhesion
  • Specialized Performance
    • Surface finish: Ra 0.1-0.4 μm achievable in aluminum
    • Stable at 10,000-30,000 RPM (depending on diameter)
    • Dry machining capable - no coolant required
  • Material-Specific Designs
    • Aluminum version: Sharp edge preparation for BUE prevention
    • CFRP version: Alternate tooth design minimizes delamination
Performance Advantages
100X Tool Life vs carbide in silicon-aluminum alloys
30% Higher Feed Rates possible vs standard end mills
Zero Tool Wear in carbon fiber machining
Consistent Quality maintains ±0.005mm tolerance over lifespan
Typical Applications
  • Structural Components
    • Wing spar pockets in 7075-T651 aluminum
    • Fuselage frames in CFRP/Ti stacks
  • Engine Parts
    • Turbine blade slots in Al-Si alloys
    • Compressor housing in magnesium composites
  • Satellite Systems
    • Antenna brackets in aluminum 6061
    • CFRP waveguide components
Product Images

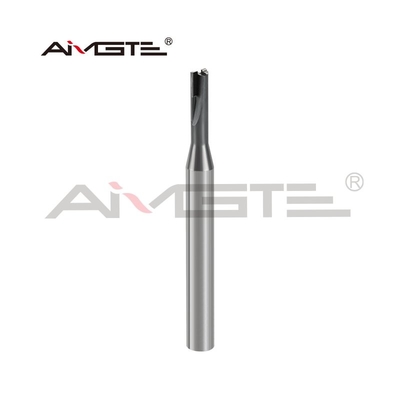

High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized 0
Our Manufacturing Facility

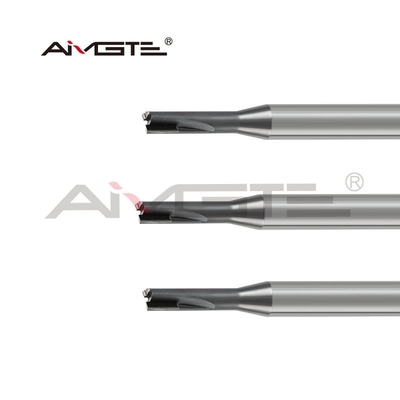

High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized 1

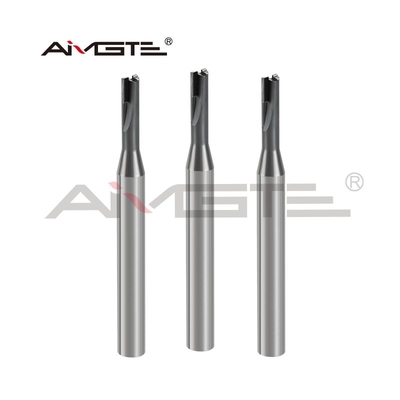

High Speed PCD Milling Cutter Aerospace Grade 2 Flute Milling Cutter Customized 2
New Customer Special Offers
1. Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.

2. $50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!

Our Manufacturing Advantages
  • Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.
  • Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. for inspecting each carbide tool.
  • Fast feedback: We offer 24 hours online service.
  • Strict quality control system: We strictly adhere to a three-stage inspection process for each tool:
    • Raw material inspection
    • Semi-finished product inspection after production
    • Final inspection after coating (pre-shipment check)
