0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel

Brand Name:	AMG
MOQ:	3-10PCS
Payment Terms:	T/T/Credit Card
Supply Ability:	30000-100000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Carbide Thread Taps

Material:

Solid Carbide

Type:

Thread Milling Cutter

Application:

Steel, Stianless Steel, Titanium, Etc

Grain Size:

0.6 μm

Shank Precision:

Thread Type:

Metric, UNC, UNF, Etc.

Thread Pitch:

Various Pitches Available

Packaging Details:

Plastic tube

Supply Ability:

30000-100000pcs per month

Highlight:

0.6μm Carbide Thread Taps

Carbide Thread Taps H6

Reduced Shank Taps

Product Description

0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel

Product Specifications

Product name	Carbide Thread Taps
Material	Solid carbide
Type	Thread milling cutter
Application	Steel, stainless steel, titanium, etc
Grain size	0.6 μm
Shank precision	h6
Thread Type	Metric, UNC, UNF, etc.
Thread Pitch	Various pitches available

Customized Solid Carbide Straight Flute Forming Tap With Reduced Shank

Product Highlights

Reduced Shank Design - Prevents collet interference in deep hole applications
Straight Flute Configuration - Optimized for through-hole thread forming
100% Solid Tungsten Carbide - 8-10× longer tool life vs HSS in steels up to HRC55
Precision Ground - Maintains ISO 4H tolerance for consistent thread quality

Technical Specifications

Thread Range: M2-M16 (Metric), #4-5/8" (UNC/UNF)
Shank Reduction: Standard 0.5mm under nominal (customizable)
Coating Options: AlTiN (standard), TiCN, or uncoated
Flute Length: 3-5× pitch (material optimized)

Key Advantages

Chip-less Operation - Ideal for ductile materials (aluminum, soft steels)
Increased Rigidity - Reduced shank improves concentricity
Higher Speeds - 50-70m/min achievable in carbon steels
Thread Strength - Formed threads show 25% better fatigue resistance

Recommended Applications

Automotive transmission cases
Aerospace fastener holes
Medical implant threads
Hydraulic manifold blocks

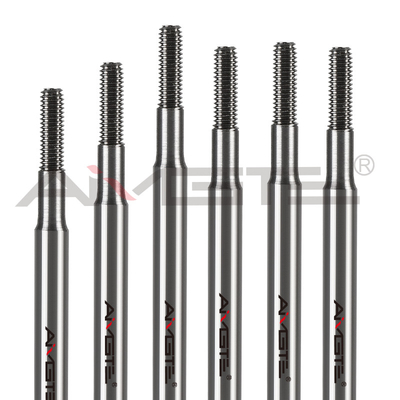

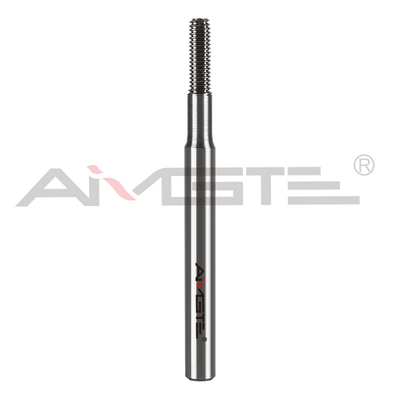

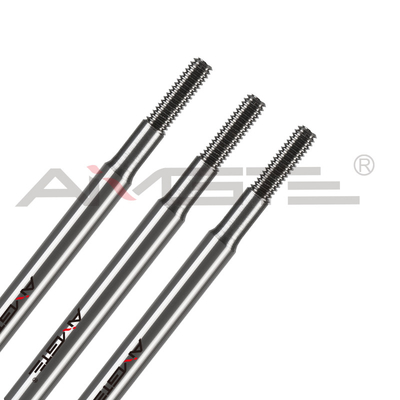

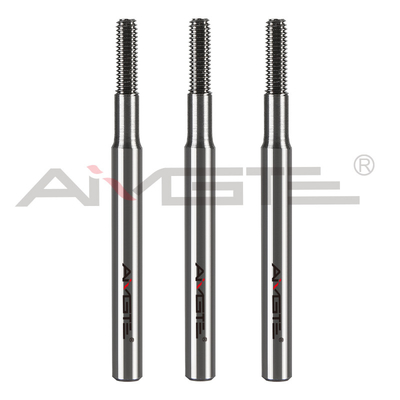

Product Images

Our Manufacturing Advantages

Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.

Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. for inspecting each carbide tool.

Highly skilled design team: Specialized in producing complicated customized carbide tools with designs tailored to work pieces.

Fast feedback: 24 hours online service available.

Strict quality control system: Three-stage inspection process including raw material inspection, semi-finished product inspection, and final pre-shipment check.
