0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Carbide Thread Taps
Material:
Solid Carbide
Type:
Thread Milling Cutter
Application:
Steel, Stianless Steel, Titanium, Etc
Grain Size:
0.6 μm
Shank Precision:
H6
Thread Type:
Metric, UNC, UNF, Etc.
Thread Pitch:
Various Pitches Available
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

0.6μm Carbide Thread Taps

,

Carbide Thread Taps H6

,

Reduced Shank Taps

Product Description
0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel
Product Specifications
Product name Carbide Thread Taps
Material Solid carbide
Type Thread milling cutter
Application Steel, stainless steel, titanium, etc
Grain size 0.6 μm
Shank precision h6
Thread Type Metric, UNC, UNF, etc.
Thread Pitch Various pitches available
Customized Solid Carbide Straight Flute Forming Tap With Reduced Shank
Product Highlights
  • Reduced Shank Design - Prevents collet interference in deep hole applications
  • Straight Flute Configuration - Optimized for through-hole thread forming
  • 100% Solid Tungsten Carbide - 8-10× longer tool life vs HSS in steels up to HRC55
  • Precision Ground - Maintains ISO 4H tolerance for consistent thread quality
Technical Specifications
  • Thread Range: M2-M16 (Metric), #4-5/8" (UNC/UNF)
  • Shank Reduction: Standard 0.5mm under nominal (customizable)
  • Coating Options: AlTiN (standard), TiCN, or uncoated
  • Flute Length: 3-5× pitch (material optimized)
Key Advantages
  • Chip-less Operation - Ideal for ductile materials (aluminum, soft steels)
  • Increased Rigidity - Reduced shank improves concentricity
  • Higher Speeds - 50-70m/min achievable in carbon steels
  • Thread Strength - Formed threads show 25% better fatigue resistance
Recommended Applications
  • Automotive transmission cases
  • Aerospace fastener holes
  • Medical implant threads
  • Hydraulic manifold blocks

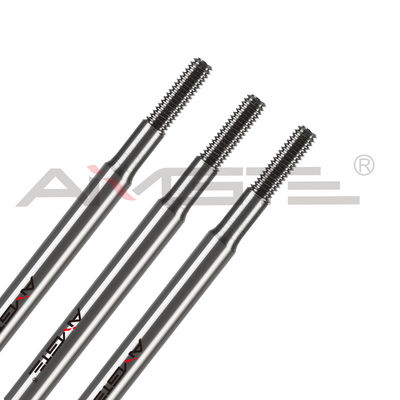

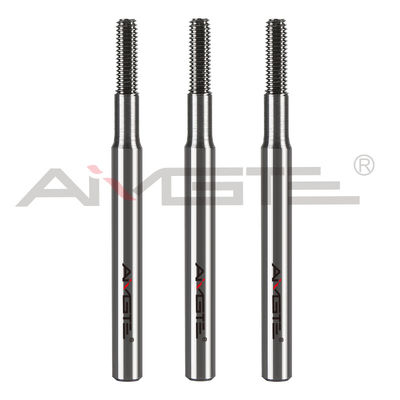

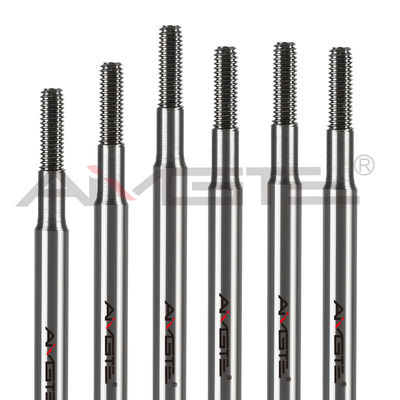

Product Images
0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel 0 0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel 1 0.6μm Carbide Thread Taps H6 Reduced Shank Taps Customized For Steel 2
Our Manufacturing Advantages
Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.
Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. for inspecting each carbide tool.
Highly skilled design team: Specialized in producing complicated customized carbide tools with designs tailored to work pieces.
Fast feedback: 24 hours online service available.
Strict quality control system: Three-stage inspection process including raw material inspection, semi-finished product inspection, and final pre-shipment check.
