Carbide End Mill
>
2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills

2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Name:
Carbide End Mill Cutter
Grain Size:
0.6μm
Coating:
TiAlN Dark Purple Color
Flute Type:
Spiral Flute
Application:
Cast Iron, Steel, Stainless Steel, Inconel 718, Etc
Shank Type:
Straight Shank
Size:
Various Sizes Available
Helix Angle:
30° Or 45 °
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

2 Flutes Carbide End Mill Cutter

,

30 Degree TiAlN Coated End Mills

,

45 Degree TiAlN Coated End Mills

Product Description
2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills
Product Specifications
Attribute Value
Name Carbide End Mill Cutter
Grain size 0.6μm
Coating TiAlN dark purple color
Flute type Spiral flute
Application Cast iron, steel, stainless steel, inconel 718, etc
Shank Type Straight shank
Size Various sizes available
Helix angle 30° or 45°
Product Description

Carbide end mill cutter 2 flutes with TiAlN coating for 304 316L stainless steel

Introduction

AMG's 2-flute carbide end mills with advanced TiAlN coating deliver exceptional performance in steel machining operations. Designed for optimal material removal and finish quality, these tools combine rigidity, heat resistance, and long tool life for your most challenging milling applications.

Features
  • Ultra-Fine Grain Carbide Substrate
    • High transverse rupture strength (≥4,200 N/mm²)
    • Excellent wear resistance for prolonged tool life
    • Optimized for steels (HRC 20-50)
  • Advanced TiAlN Coating
    • Extreme heat resistance (up to 900°C)
    • Low friction coefficient for smooth cutting
    • 3-5μm coating thickness for durability
  • Optimized 2-Flute Geometry
    • 30° helix angle for balanced chip evacuation
    • Sharp cutting edges for reduced cutting forces
    • Center-cutting design for plunge milling
Performance Advantages

For CNC Machinists:

  • Superior surface finish (Ra 0.4 μm achievable)
  • Reduced vibration during side milling
  • Excellent chip clearance in deep slots

For Production Efficiency:

  • 30% higher feed rates than standard end mills
  • 2-3× longer tool life vs. uncoated carbide
  • Reliable performance in continuous or interrupted cuts
Typical Applications
  • Mold & Die: Cavity milling, pocketing
  • Automotive: Component profiling, slotting
  • General Engineering: Precision contouring
  • Aerospace: Structural part machining
Product Images

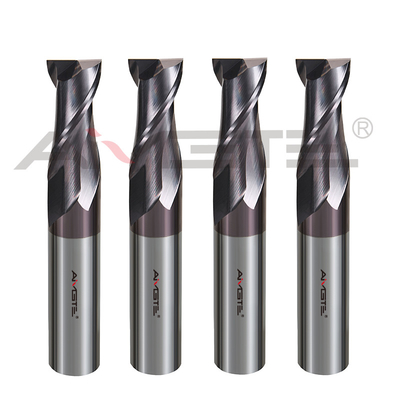

2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills 0

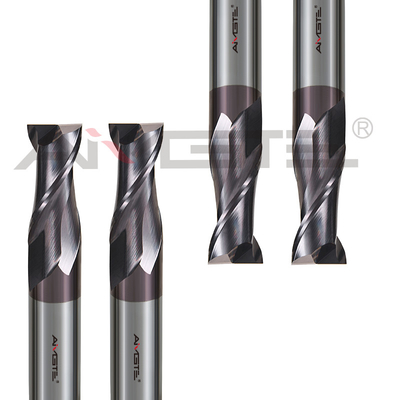

2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills 1

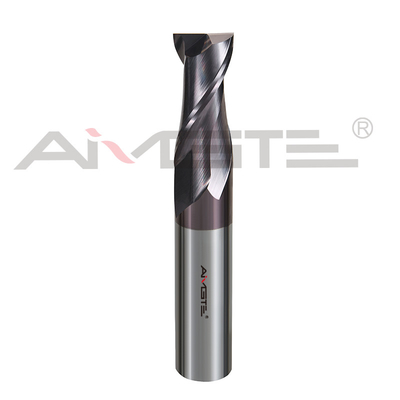

2 Flutes Carbide End Mill Cutter 30 Degree 45 Degree TiAlN Coated End Mills 2
