Wear Resistant 2 Flute Drill Bit 4mm - 32mm Straight Flute Carbide Drill

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Name:
2 Flute Drill Bit
Material:
Carbide
Number Of Flute:
2
Type:
Carbide Step Drill
Diameter:
4-32mm
Overall Length:
50-400mm
Flute Type:
Spiral Flute
Coolant Method:
Outside Coolant
Application:
Cast Iron, Steel, Stainless Steel, Etc
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

Wear Resistant 2 Flute Drill Bit

,

2 Flute Drill Bit 4mm

,

32mm Straight Flute Carbide Drill

Product Description
Wear Resistant 2 Flute Drill Bit 4mm - 32mm Straight Flute Carbide Drill
Product Specifications
Name 2 Flute Drill Bit
Material Carbide
Number of flute 2
Type Carbide step drill
Diameter 4-32mm
Overall length 50-400mm
Flute type Spiral flute
Coolant method Outside coolant
Application Cast iron, steel, stainless steel, etc
Product Overview
High-precision multi-diameter drilling tools designed for carbon steel, stainless steel, and hardened alloys. Featuring solid carbide construction and straight-flute geometry, these step drills deliver burr-free edges, exceptional rigidity, and extended tool life in demanding industrial applications.
Key Features
  • Straight Flute Design - Eliminates chip entanglement (ideal for sticky steels)
  • Multi-Diameter Steps - Drill and chamfer in one operation (e.g., 3-5 steps per tool)
  • Ultra-Fine Carbide Substrate - Optimized for HRC 45+ materials
  • Wear-Resistant Coating - TiAlN/TiCN coatings reduce friction and heat buildup
  • Rigid Shank - Precision-ground for <0.01mm runout
Performance Advantages
  • 50% faster than conventional twist drills in stacked/stainless steel
  • No secondary deburring required (clean hole edges)
  • Consistent accuracy across all step diameters (±0.02mm)
Typical Applications
  • Automotive (body panels, brackets)
  • Sheet metal fabrication (electrical enclosures, HVAC)
  • Machinery (bearing seats, hydraulic ports)
Product Images

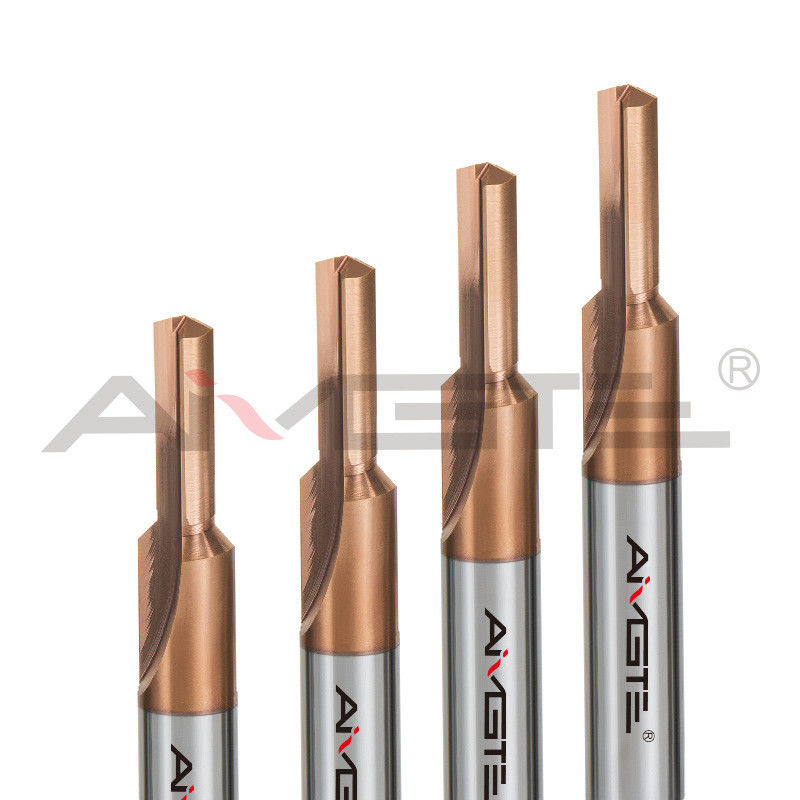

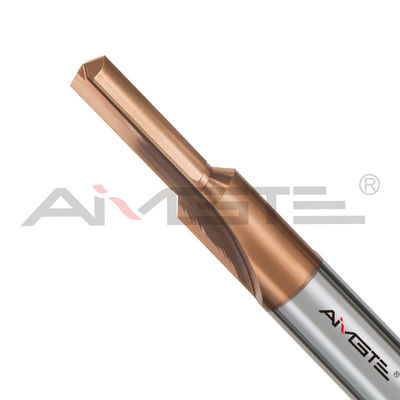

Wear Resistant 2 Flute Drill Bit 4mm - 32mm Straight Flute Carbide Drill 0

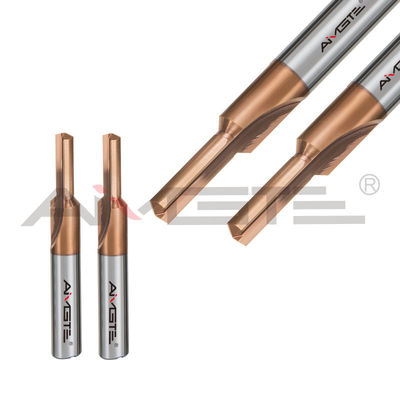

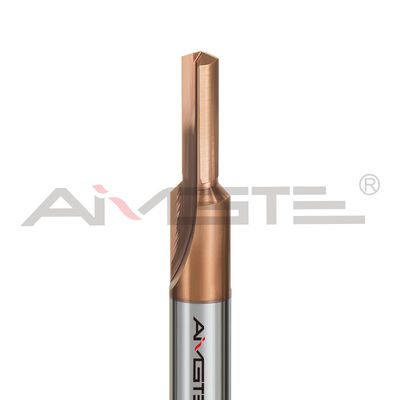

Wear Resistant 2 Flute Drill Bit 4mm - 32mm Straight Flute Carbide Drill 1
Special Offers

Free sample: Free samples can be provided, if client is willing to pay the shipping cost.

New customer offer: Enjoy USD50 discount when you spend USD500+ on your first order.
