Heavy Duty Drill Bit

4mm - 32mm Heavy Duty Drill Bit HRC45 - HRC65 Spiral Flute Drill Bit

All Category

Carbide Boring Tool

Ms. Niki

niki@carbide-drill.com

+86 17368153006

AMG-TOOLS

Contact Now

4mm - 32mm Heavy Duty Drill Bit HRC45 - HRC65 Spiral Flute Drill Bit

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Heavy Duty Drill Bit

Material:

Tungsten Carbide

Number Of Flute:

Type:

Carbide Heavy Duty Drill

Diameter:

4-32mm

Overall Length:

50-300mm

Flute Type:

Spiral Flute

Size:

Various Sizes Available

Application:

Cast Iron, Steel, Stainless Steel, Copper, Etc

Supply Ability:

30000-100000pcs per month

Highlight:

32mm Heavy Duty Drill Bit

Heavy Duty Drill Bit HRC45

HRC65 Spiral Flute Drill Bit

Product Description

4mm - 32mm Heavy Duty Drill Bit HRC45 - HRC65 Spiral Flute Drill Bit

Attribute	Value
Name	Heavy Duty Drill Bit
Material	Tungsten carbide
Number of flute	2
Type	Carbide heavy duty drill
Diameter	4-32mm
Overall length	50-300mm
Flute type	Spiral flute
Size	Various sizes available
Application	Cast iron, steel, stainless steel, copper, etc

Engineered for Extreme Durability

These high-performance carbide drills are specifically designed for drilling hardened steels (HRC 45-65). Featuring a robust 2-flute design, they deliver superior performance with high feed rates, excellent chip control, and extended tool life in demanding industrial applications.

Key Features

Solid Micro-Grain Carbide - Ultra-hard substrate for exceptional wear resistance in abrasive materials
2-Flute Geometry - Optimized for balanced chip evacuation and rigidity in deep-hole drilling
Advanced Coating - TiAlN/AlCrN coating provides heat resistance up to 1,000°C
Split-Point Design - Reduces thrust force and prevents walking for precise drilling

Performance Advantages

3× longer tool life compared to standard carbide drills in D2, H13, and 4340 steels
Higher feed rates (up to 0.25mm/rev) without compromising hole quality
Exceptional hole straightness (±0.05mm per 100mm depth)

Typical Applications

Die & Mold - Hardened tool steel drilling (P20, S7)
Aerospace - Landing gear components, turbine shafts
Oil & Gas - Drill collars, valve bodies
Automotive - Transmission gears, crankshafts

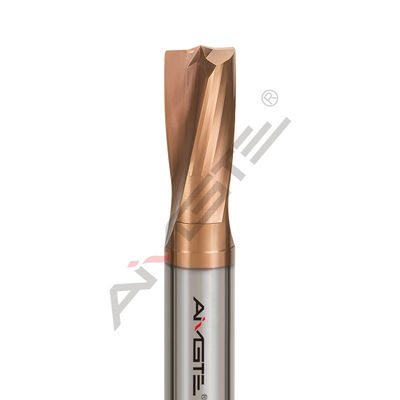

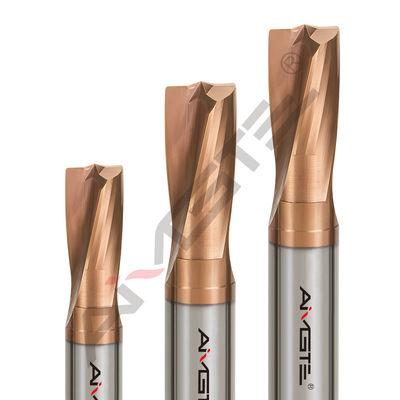

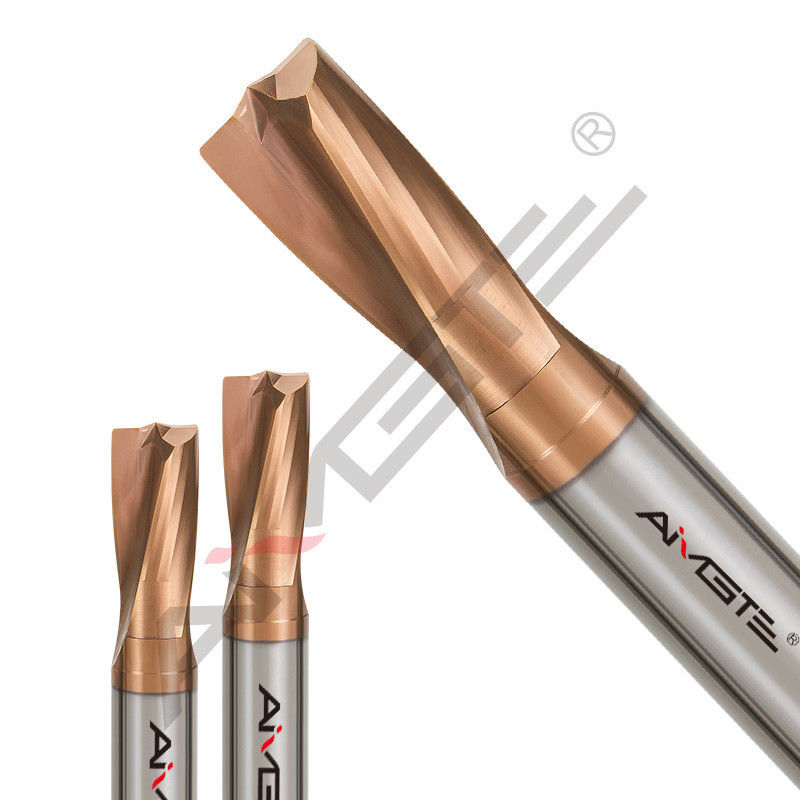

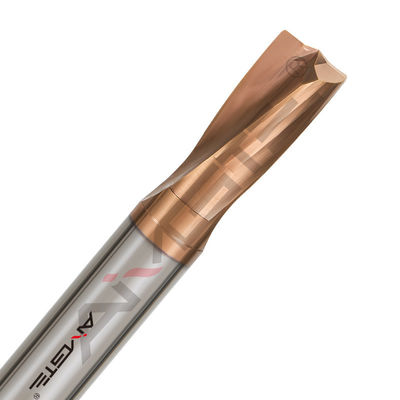

Product Images
