3 Flutes Tungsten Carbide Tools 50mm - 300mm Form Cutting Tool With Corner Radius

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Name:
Tungsten Carbide Tools
Material:
Tungsten Carbide
Number Of Flute:
3
Type:
Forming Cutter For Aluminium
Diameter:
4-32mm
Overall Length:
50-300mm
Size:
Various Sizes Available
Application:
Aluminium, Copper
Cutting Edge Type:
Sharp
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

3 Flutes Tungsten Carbide Tools

,

Tungsten Carbide Tools 50mm

,

300mm Form Cutting Tool

Product Description
3 Flutes Tungsten Carbide Tools 50mm - 300mm Form Cutting Tool With Corner Radius
Product Specifications
Attribute Value
Name Tungsten Carbide Tools
Material Tungsten carbide
Number of flute 3
Type Forming cutter for aluminium
Diameter 4-32mm
Overall length 50-300mm
Size Various sizes available
Application Aluminium, copper
Cutting Edge Type Sharp
Product Overview
Precision-engineered for high-speed machining of aluminum alloys, this 3-flute carbide forming cutter features an optimized corner radius for smooth finishing, reduced tool pressure, and superior chip evacuation. Ideal for contouring, pocketing, and 3D profiling, it delivers mirror-like surface finishes (Ra ≤0.8µm) while maximizing tool life.
Key Features
  • 3-Flute Design - Balances high feed rates and chip clearance
  • Corner Radius (R0.2 -R1.0mm) - Prevents edge chipping & improves tool life
  • High-Performance Carbide - Micro-grain substrate for wear resistance
  • High-Speed Geometry - 45° helix angle for vibration-free machining
Typical Applications
  • Aerospace - Airframe components, fuselage panels
  • Automotive - Cylinder heads, battery housings
  • Electronics - Heat sinks, LED housings

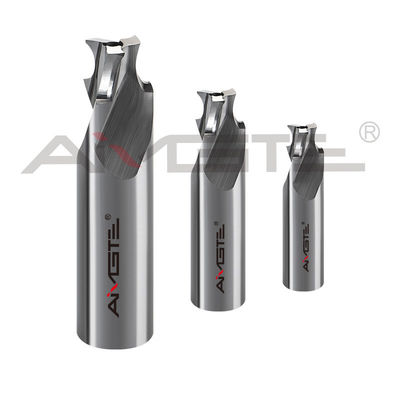

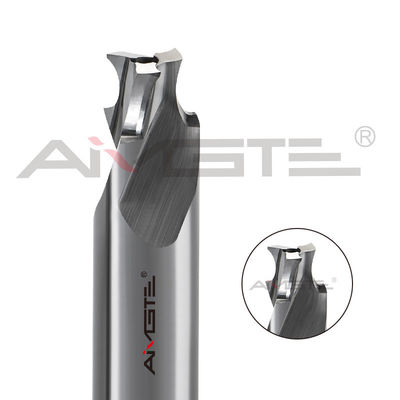

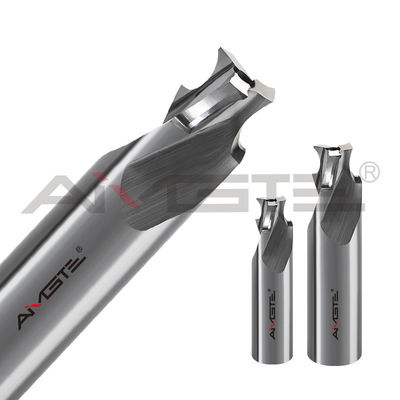

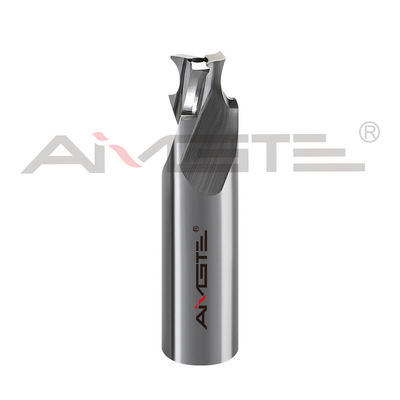

Product Images
3 Flutes Tungsten Carbide Tools 50mm - 300mm Form Cutting Tool With Corner Radius 0 3 Flutes Tungsten Carbide Tools 50mm - 300mm Form Cutting Tool With Corner Radius 1
Special Offers
Free samples can be provided if client is willing to pay the shipping cost.
Special offer for new customers: Enjoy USD50 discount when you spend USD500+ on your first order.
