4.0mm - 8.0mm Carbide Boring Tool 0.4μm Boring Bar Cutters For Small Hole Turning

Brand Name:	AMG
MOQ:	3-10PCS
Payment Terms:	T/T/Credit Card
Supply Ability:	30000-100000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Carbide Boring Tool

Material:

Carbide

Coating:

TiN

Shank Diameter:

4-8mm

Controlling Mode:

CNC Tooling System

Origin:

Jiangsu China

Grain Size:

0.4μm

Application:

Aluminium, Brass, Steel.etc

Packaging Details:

Plastic tube

Supply Ability:

30000-100000pcs per month

Highlight:

4.0mm Carbide Boring Tool

8.0mm Carbide Boring Tool

0.4μm Boring Bar Cutters

Product Description

4.0mm - 8.0mm Carbide Boring Tool 0.4μm Boring Bar Cutters For Small Hole Turning

Product Specifications

Attribute	Value
Name	Carbide Boring Tool
Material	Carbide
Coating	TiN
Shank diameter	4-8mm
Controlling mode	CNC Tooling System
Origin	Jiangsu China
Grain size	0.4μm
Application	Aluminium, brass, steel, etc.

Precision Carbide Boring Tool for Small Hole Machining

Our carbide boring tools are precision cutting instruments designed for enlarging, finishing, and accurately sizing small holes in machining operations. Ideal for use in lathes, CNC turning centers, and machining centers where high precision is required.

Key Features

Superior Material: Constructed from tungsten carbide for exceptional hardness, wear resistance, and heat resistance compared to High-Speed Steel (HSS)
Precision Design: Capable of handling small diameters from 0.5mm to 12mm
Rigid Construction: Features a sturdy shank to minimize deflection during deep-hole boring operations
Adjustable Components: Includes replaceable carbide tips for fine-tuning hole dimensions

Industrial Applications

Precision boring of small holes in various metals including steel, aluminum, and stainless steel
Internal diameter (ID) finishing and semi-finishing operations
High-speed machining applications requiring excellent surface finish

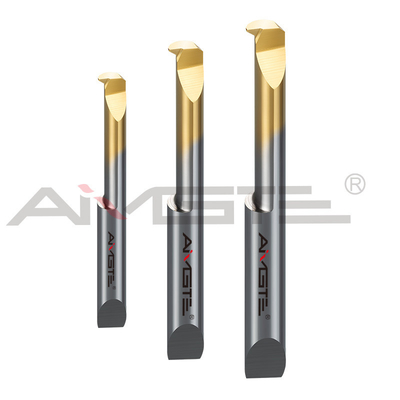

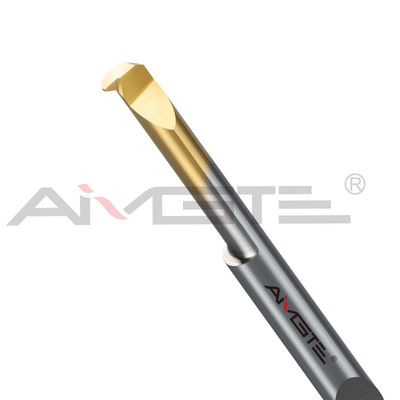

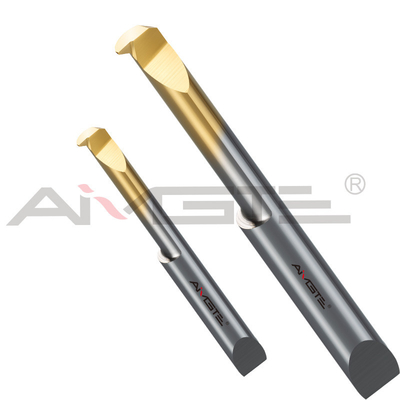

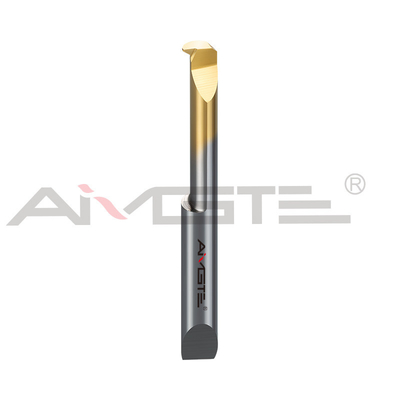

Product Images

Manufacturing Advantages

Advanced grinding machines from WALTER and SAACKE brands ensure precision manufacturing

Comprehensive inspection equipment including ZOLLER, OMEGA, and PG1000 for quality assurance

Skilled design team specializing in complex custom carbide tool solutions

24-hour online support for fast response to customer needs

Rigorous three-stage quality control process covering raw materials, production, and final inspection
