10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating

Brand Name: AMG
Model Number: DIN-3D
MOQ: 3-10PCS
Packaging Details: Plastic tube
Payment Terms: T/T/Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Tungsten Carbide Drill Bit
Material:
Solid Carbide
Precision:
M7
Diameter:
4-32mm
Overall Length:
50-400mm
OEM/ODM:
Available
Application:
Cast Iron, Steel, Inconel, Titanium, Etc
Coating:
Blue Nano
Supply Ability:
30000-100000pcs per month
Highlight:

10mm Tungsten Carbide Drill Bit

,

Tungsten Carbide Drill Bit M7

,

Flat Bottom Drill Bit Solid

Product Description
10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating
Product name Tungsten Carbide Drill Bit
Material Solid carbide
Precision m7
Diameter 4-32mm
Overall length 50-400mm
OEM/ODM Available
Application Cast iron, steel, inconel, titanium, etc
Coating Blue Nano
Premium Tungsten Carbide Drill Bit with Blue Nano Coating

The AMG Tungsten Carbide Drill Bit with advanced Blue Nano Coating delivers superior precision and durability for flat-bottom hole drilling. Engineered for high-performance machining, this drill bit ensures exceptional wear resistance, reduced friction, and extended tool life in demanding applications.

Key Features
  • High-Grade Tungsten Carbide - Ultra-hard material for maximum durability
  • Blue Nano Coating - Advanced surface treatment for heat resistance, reduced friction, and anti-adhesion
  • Precision Flat Bottom Design - Produces accurate 90° bottom holes for critical machining needs
  • Optimized Cutting Geometry - Ensures smooth chip evacuation and minimal vibration
  • Rigid Shank Design - Enhances stability and reduces deflection during drilling
Recommended Applications
  • Flat-bottom holes in molds, jigs, and precision components
  • Hard Materials: Stainless steel, alloy steel, titanium, Inconel, and composites
  • Industries: Aerospace, automotive, medical devices, and precision engineering
Performance Benefits
✓
Extended Tool Life - Blue Nano Coating resists wear in high-temperature environments
✓
Superior Surface Finish - Clean, burr-free holes with tight tolerances
✓
High-Speed Capable - Suitable for CNC and high-RPM operations
✓
Reduced Cutting Forces - Efficient drilling with less energy consumption
Available Specifications
  • Diameter Range: 1mm - 20mm (custom sizes available)
  • Shank Type: Straight, reduced, or coolant-through (optional)
  • Coating: Blue Nano (standard), TiAlN, or AlCrN for extreme conditions
Product Images

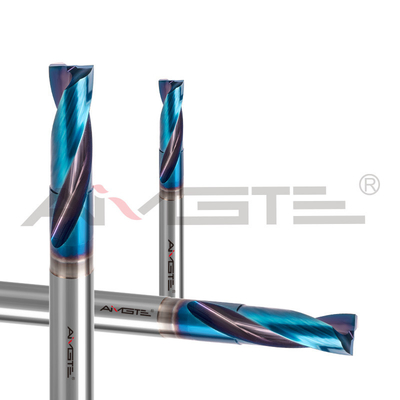

10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating 0
Our Workshop

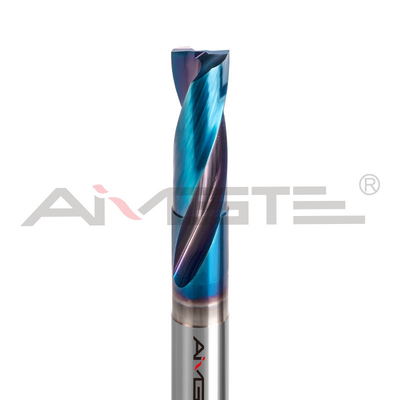

10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating 1

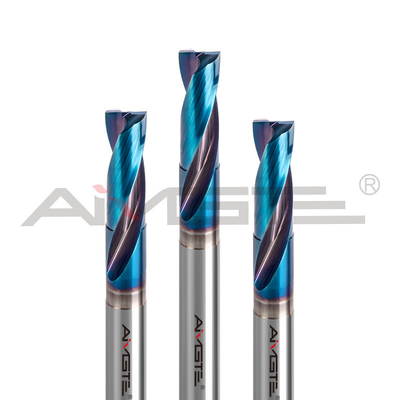

10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating 2
New Customer Special Offers
Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.

$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!

Our Manufacturing Advantages
  • Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands
  • Advanced inspection machines: We have ZOLLER, OMEGA, PG1000 for inspecting each carbide tool
  • Fast feedback: 24 hours online service
  • Strict quality control system: Three-stage inspection process for each tool
Related Products

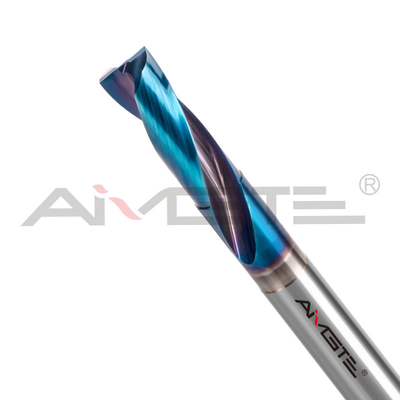

10mm Tungsten Carbide Drill Bit M7 Flat Bottom Drill Bit Solid With Blue Nano Coating 3
