R10 Four Flute End Mill 0.4μm Carbide Ball End Mill H6 For Steel

Brand Name:	AMG
MOQ:	3-10PCS
Payment Terms:	T/T/Credit Card
Supply Ability:	30000-100000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Four Flute End Mill

Grain Size:

0.4μm

Coating:

AlTiCrN Coating

Application:

Steel, Inconel, Stainless Steel, Etc

Shank Type:

Straight Shank

Size:

Various Sizes Available

Precision:

0/-0.02mm

Shank Precision:

Packaging Details:

Plastic tube

Supply Ability:

30000-100000pcs per month

Highlight:

R10 Four Flute End Mill

Four Flute End Mill 0.4μm

Carbide Ball End Mill H6

Product Description

R10 Four Flute End Mill 0.4μm Carbide Ball End Mill H6 For Steel

Product Specifications

Attribute	Value
Name	Four Flute End Mill
Grain size	0.4μm
Coating	AlTiCrN coating
Application	Steel, inconel, stainless steel, etc
Shank Type	Straight shank
Size	Various sizes available
Precision	0/-0.02mm
Shank precision	h6

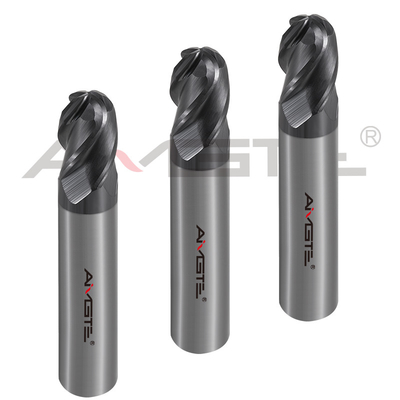

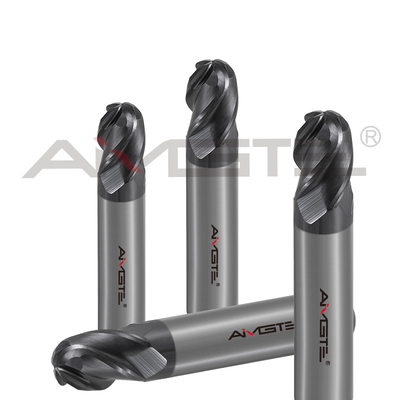

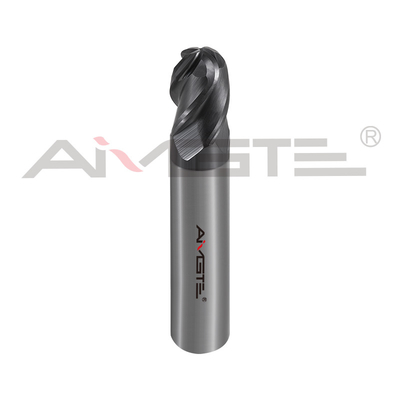

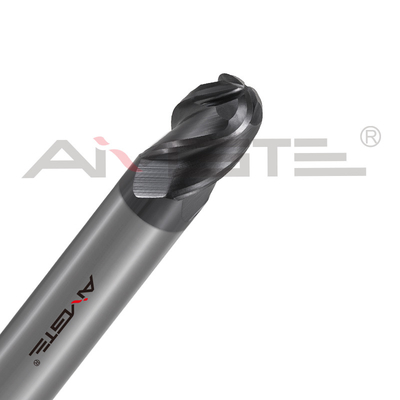

High-Performance 4-Flute Solid Carbide Ball End Mill

The AMG 4-flute solid carbide ball end mill is a precision CNC cutting tool engineered for 3D contouring, semi-finishing, and finishing operations in hardened steels, molds, dies, and aerospace alloys. Its ballnose tip and 4-flute design deliver exceptional surface finish, extended tool life, and optimal material removal rates in demanding machining applications.

Key Features

Solid Carbide Construction: Premium micro-grain carbide (0.4μm) provides maximum rigidity and wear resistance in materials up to HRC 60+, with reduced tool deflection for stable deep cavity machining.
4-Flute Design: Enables higher feed rates and improved surface finish compared to 2-flute designs, with balanced chip evacuation for efficient machining in steels and superalloys.
Ballnose Tip (R0.5mm - R10mm+): Ideal for 3D profiling, mold/die finishing, and complex curvature machining with smooth transitions and minimal step-over marks.
Advanced AlTiCrN Coating: Provides extreme heat and abrasion resistance for prolonged tool life, while reducing friction and built-up edge in challenging materials.
Optimized for Hard Materials: Excellent performance in hardened tool steels (H13, P20, D2), titanium, Inconel, and specialized versions for graphite and composites.
High-Speed Machining Ready: Stable cutting performance at high RPMs for reduced cycle times, suitable for HSM and trochoidal milling strategies.

Typical Applications

Precision mold and die finishing
Aerospace component machining (blades, impellers)
Medical device manufacturing (implants, prosthetics)
Automotive and energy industry components (turbine parts, injection molds)

Performance Advantages

Longer tool life than 2-flute designs in finishing operations
Higher productivity through increased flute count
Superior surface finish requiring minimal post-processing

Product Images

Our Manufacturing Facility

Special Offers for New Customers
