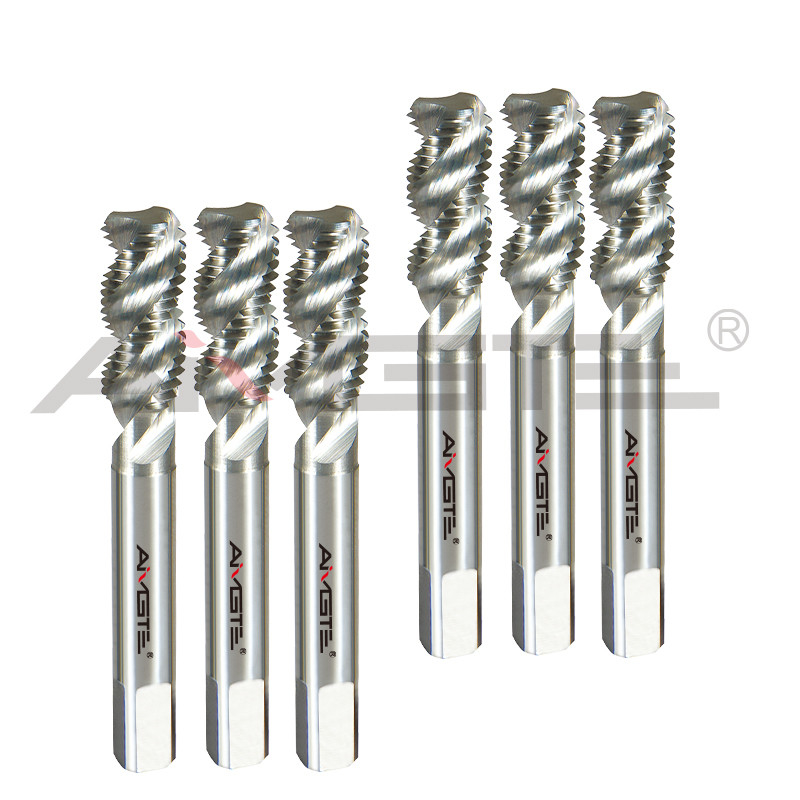

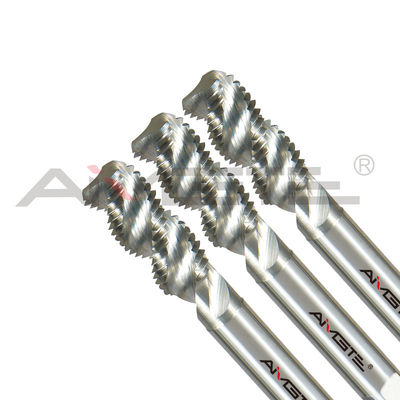

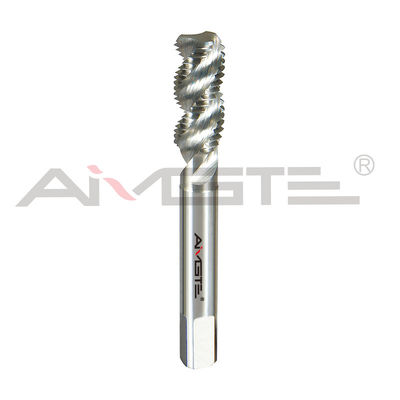

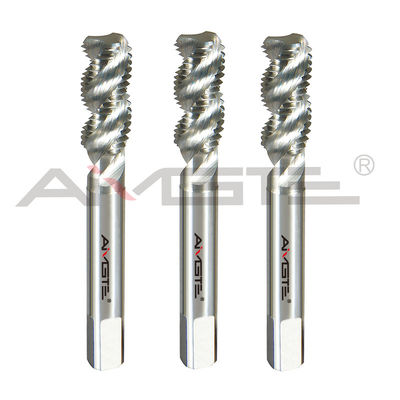

30 / 45 / 55 Degree M6 Spiral Flute Tap H6 Solid Carbide Tap

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

M6 Spiral Flute Tap

Number Of Flute:

Grain Size:

0.8μm Or 0.6μm

Coating:

TiAlN / AlCrN/ Uncoated Polished

Application:

Inconel 718/17-4PH SS/A286 Superalloy/Ti-6Al-4V

Shank Precision:

Helix:

30/45/55degree

Service:

OEM/ODM

Supply Ability:

30000-100000pcs per month

Highlight:

30 Degree M6 Spiral Flute Tap

55 Degree M6 Spiral Flute Tap

H6 Solid Carbide Tap

Product Description

30 / 45 / 55 Degree M6 Spiral Flute Tap H6 Solid Carbide Tap

Product Specifications

Attribute	Value
Name	M6 Spiral Flute Tap
Number of flute	3
Grain size	0.8μm or 0.6μm
Coating	TiAlN / AlCrN/ uncoated polished
Application	Inconel 718/17-4PH SS/A286 Superalloy/Ti-6Al-4V
Shank precision	h6
Helix	30/45/55degree
Service	OEM/ODM

M6 Superalloys Carbide Spiral Forming Tap For Automotive Industry

A carbide spiral forming tap is a specialized cutting tool used for creating internal threads in materials, particularly in hard or abrasive substances where standard high-speed steel (HSS) taps may wear out quickly.

Key Features

Material: Made from solid carbide (tungsten carbide), offering superior hardness, heat resistance, and wear resistance compared to HSS taps.
Spiral Flute Design: Helical flutes efficiently evacuate chips upward, reducing clogging and improving thread quality.
Forming Tap (No Chip Production): Displaces metal to create threads through cold forging, resulting in:
- Stronger threads due to work hardening
- No chips, ideal for blind holes
- Better surface finish
High Precision: Maintains sharpness longer for consistent thread quality
Coatings (Optional): TiN, TiCN, or AlCrN coatings enhance lubricity and tool life

Recommended Sizes for Automotive Applications

Thread Size	Hole Diameter (Pre-Drill)	Pitch	Typical Automotive Use
M6x1.0	5.35 - 5.40 mm	Coarse	Turbocharger bolts, sensors
M8x1.25	7.30 - 7.35 mm	Coarse	Engine block, transmission
M10x1.5	9.30 - 9.35 mm	Coarse	Cylinder head, suspension
1/4 "-20	0.228" (5.79 mm)	UNC	Fuel injectors, brackets
5/16 "-18	0.291" (7.39 mm)	UNF	High-strength fasteners
