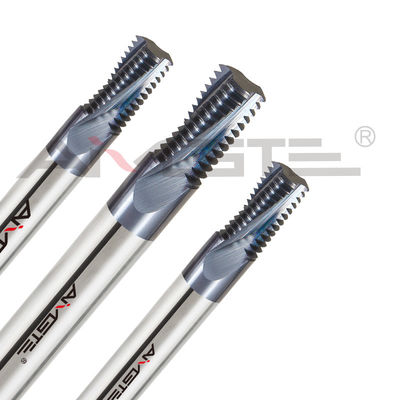

Full Profile Carbide Thread Milling Cutter M2 - M20 High Precision Milling Cutter For Aerospace

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Carbide Thread Milling Cutter

Number Of Flute:

Coating:

TiAlN / AlCrN/ Uncoated Polished

Application:

Inconel 718/17-4PH SS/A286 Superalloy/Ti-6Al-4V

Service:

OEM/ODM

Helix Angle:

30°-45°

Overall Length:

50mm-100mm

Cutting Diameter:

1mm-10mm

Cutting Direction:

Right Hand

Cutting Length:

3mm-30mm

Flute Type:

Spiral

Material:

Carbide

Shank Type:

Cylindrical

Thread Size:

M2-M20

Supply Ability:

30000-100000pcs per month

Highlight:

Full Profile Carbide Thread Milling Cutter

Carbide Thread Milling Cutter M2

M20 High Precision Milling Cutter

Product Description

Full Profile Carbide Thread Milling Cutter M2 - M20 High Precision Milling Cutter For Aerospace

Product Specifications

Name	Carbide Thread Milling Cutter
Number of flute	3
Coating	TiAlN / AlCrN/ uncoated polished
Application	Inconel 718/17-4PH SS/A286 Superalloy/Ti-6Al-4V
Service	OEM/ODM
Helix Angle	30°-45°
Overall Length	50mm-100mm
Cutting Diameter	1mm-10mm
Cutting Direction	Right Hand
Cutting Length	3mm-30mm
Flute Type	Spiral
Material	Carbide
Shank Type	Cylindrical
Thread Size	M2-M20

ISO Full-Profile Aerospace Precision Thread Milling Cutter coated AlCrN

Key Specifications

Design Standard: ISO 529 (for full-profile thread milling)
Material: Solid Carbide (Tungsten Carbide)
Coating: AlCrN (Aluminum Chromium Nitride)
- Benefits: Extreme heat resistance (up to 1100°C), low friction, and extended tool life in superalloys.
Profile Type: Full-Profile (Complete Thread Form in One Pass)
- Advantage: Eliminates multi-pass machining, ensuring consistent thread accuracy.

Aerospace Applications

Typical Materials:
- Titanium (Ti-6Al-4V)
- Nickel-based alloys (Inconel 718, Waspaloy)
- High-strength stainless steels (A286, 17-4PH)
Components:
- Turbine blade root threads
- Fuel system fittings
- Landing gear actuator threads

Performance Features

Precision & Tolerance

Thread Accuracy: ± 0.005mm (DIN Class 1)
Surface Finish: Ra ≤ 0.8μm (Mirror-grade for critical sealing surfaces)

Cutting Geometry

Helix Angle: 30°-45° (Optimized for chip evacuation in gummy materials like titanium)
Cutting Edge Prep: Honed edge (Prevents micro-chipping in hardened alloys)

Coating Advantages (AlCrN)

Reduced Built-Up Edge (BUE): Critical for aluminum-containing alloys (e.g., Ti-6Al-4V)
Oxidation Resistance: Outperforms TiN/TiCN in high-speed machining (>150 m/min)

Machining Parameters (Example: Inconel 718)
