0.6μm / 0.8μm Tapered Ball Nose End Mill 75mm For Aluminum

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Tapered Ball Nose End Mill

Size:

As Per The Drawing

Number Of Flutes:

Service:

OEM/ODM

Diameter:

0.5-35mm

Type:

Customized

Overall Length:

75mm

Surface Finish:

Aluminum Titanium Nitride

Helix Angle:

45 Degrees

Grain Size:

0.6μm Or 0.8μm

Origin:

Jiangsu (China)

Shank Precision:

Supply Ability:

30000-100000pcs per month

Highlight:

0.6μm Tapered Ball Nose Endmill

0.8μm Tapered Ball Nose Endmill

75mm End Mill For Aluminum

Product Description

0.6μm / 0.8μm Tapered Ball Nose End Mill 75mm For Aluminum

Attribute	Value
Name	Tapered Ball Nose End Mill
Size	As per the drawing
Number Of Flutes	2
Service	OEM/ODM
Diameter	0.5-35mm
Type	Customized
Overall Length	75mm
Surface Finish	Aluminum Titanium Nitride
Helix Angle	45 degrees
Grain Size	0.6μm or 0.8μm
Origin	Jiangsu (China)
Shank precision	h6

High-Performance Solid Carbide End Mill for Aluminum

This precision-engineered tapered ball nose end mill is specifically designed for machining aluminum and other non-ferrous materials. Its unique 7° tapered design and ballnose tip make it ideal for 3D contouring, profiling, and finishing operations in molds, aerospace components, and intricate die work.

Key Features

Tapered Design (R4 ×7°)

Reduces vibration and deflection during deep cuts while enhancing rigidity for superior surface finish.
Ballnose Tip (D12)

Enables smooth 3D contouring and fine detailing for complex geometries and curved surfaces.
Optimized for Aluminum

Special helix angle and polished flutes ensure efficient chip evacuation while reducing built-up edge (BUE) to extend tool life.
Solid Carbide Construction

Provides high wear resistance and heat tolerance for high-speed machining (HSM) applications.

Dimensions

Cutting Diameter (D): 12mm
Shank Diameter: Likely 12mm (or tapered to match)
Overall Length (OAL): 75mm
Flute Length: Varies (shorter than OAL for rigidity)

Typical Applications

Aerospace (lightweight aluminum parts)

Mold & Die (detailed cavity machining)

Automotive (prototyping & finishing)

General CNC machining (non-ferrous metals)

Performance Advantages

Reduced Chatter: Tapered shank improves stability during operation
Longer Tool Life: Carbide construction with specialized coating extends durability
Superior Finish: Polished flutes minimize material adhesion for cleaner cuts

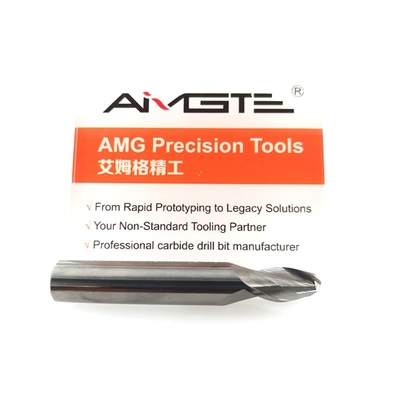

Product Images
