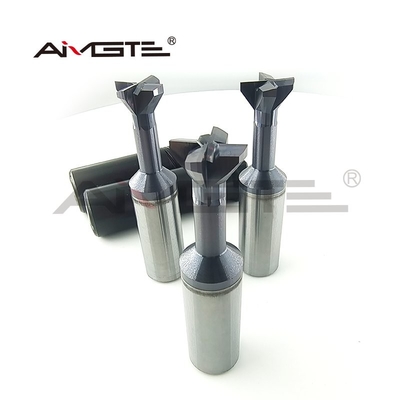

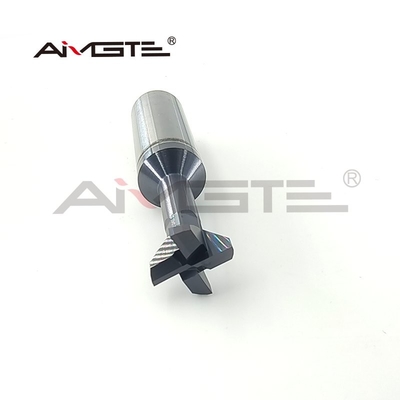

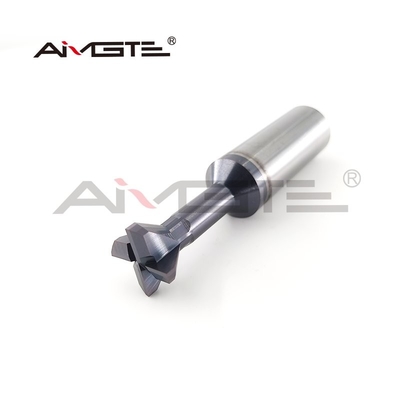

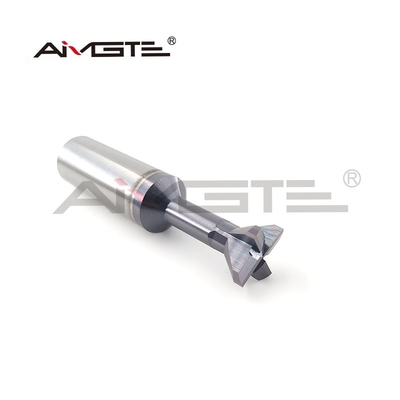

20mm Custom End Mill 4 Flute Carbide Dovetail End Mill 0.6μm / 0.8μm With Corner Radius

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Custom End Mill

Number Of Flute:

Customized

Grain Size:

0.6μm Or 0.8μm

Application:

Steel, Stainless Steel, And Hardened Alloys

Shank Precision:

Tolerance:

0/-0.01mm Or Customized

Supply Ability:

30000-100000pcs per month

Highlight:

4 Flute Carbide Dovetail Endmill

20mm Carbide Dovetail End Mill

Custom Corner Radius End Mill

Product Description

20mm Custom End Mill 4 Flute Carbide Dovetail End Mill 0.6μm / 0.8μm With Corner Radius

Product Specifications

Attribute	Value
Name	Custom End Mill
Number of flute	Customized
Grain size	0.6μm or 0.8μm
Application	Steel, stainless steel, and hardened alloys
Shank precision	h6
Tolerance	0/-0.01mm or customized

Product Overview

A 20mm dovetail customized carbide end mill with 4 flutes and corner radius (bull nose) is a specialized cutting tool designed for machining dovetail grooves, undercuts, and other angled profiles in hard materials.

Key Features

Diameter: 20mm (shank size may vary based on holder requirements)
Tool Type: Dovetail End Mill - Designed to cut angled sides (typically 45°, 60°, or custom angles)
Material: Solid Carbide - Ensures high wear resistance, rigidity, and heat resistance
Flutes: 4 Flutes - Provides balance between chip evacuation and surface finish
Corner Radius: Improves edge strength and achieves smoother finishes
Coating Options: TiAlN, AlTiN, or DLC for improved tool life; uncoated for general-purpose
