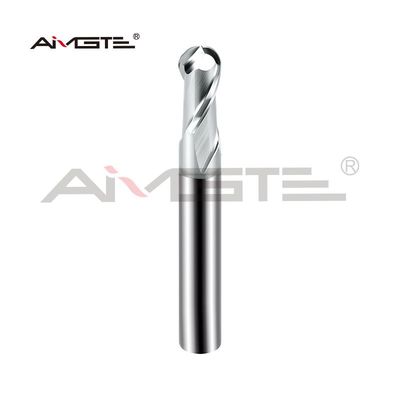

2 Flute Ball Nose End Mills 1mm - 10mm Milling Cutter For Copper Electrodes

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Ball Nose End Mills

Standard Diameters::

1mm To 12mm

Shank Tolerance:

H6 (for High-precision Tool Holders)

Helix Angle::

35° (optimized For Non-ferrous Materials).

Coating:

CrN Coating

Machine Type:

Milling Maching,ANCA,Walter From German

Commodity Name:

CNC Cutting Tools,Carbide End Mills

Standards::

DIN 6527 / ISO 9001 Compliant

Supply Ability:

30000-100000pcs per month

Highlight:

1mm Ball Nose End Mill

10mm Ball Nose End Mill

Product Description

2 Flute Ball Nose End Mills 1mm - 10mm Milling Cutter For Copper Electrodes

Product Specifications

Attribute	Value
Name	Ball Nose End Mills
Standard Diameters	1mm to 12mm
Shank Tolerance	h6 (for high-precision tool holders)
Helix Angle	35° (optimized for non-ferrous materials)
Coating	CrN coating
Machine type	Milling Machine, ANCA, Walter from German
Commodity name	CNC Cutting Tools, Carbide End Mills
Standards	DIN 6527 / ISO 9001 compliant

Premium 2-Flute Ball Nose End Mill for Copper Electrodes

Our precision-engineered 2-flute ball nose end mill is specifically designed for high-performance machining of copper electrodes, graphite, and non-ferrous alloys. Featuring a CrN (Chromium Nitride) coating and optimized ball nose geometry, it delivers superior wear resistance, reduced material adhesion, and exceptional surface finishes - ideal for EDM electrode manufacturing, mold making, and precision CNC applications.

Crafted from ultra-fine grain solid carbide, this tool outperforms standard end mills in tool life, cutting speed, and chip evacuation, especially in sticky materials like pure copper (C11000) and beryllium copper (C17200).

Key Features

2-Flute Ball Nose Design - Optimized for smooth 3D contouring and fine-detail work
CrN Coating - Enhances hardness (2,200 HV) and prevents copper adhesion
High Helix Angle (35°) - Improves chip flow and reduces heat buildup
Precision Ground Edges - Ensures consistent radii (±0.005mm) for accuracy
Center Cutting - Allows plunge milling and slotting
Diameter Range - 1mm to 10mm (standard), with custom sizes available

Performance Advantages

50% Longer Tool Life - CrN coating resists wear and reduces galling
Mirror-Like Finishes (Ra < 0.2μm) - Minimizes post-EDM polishing
Higher Feed Rates - Efficient chip clearance enables faster machining
Stable Cutting - Reduced vibration in deep cavities and thin-wall geometries

Typical Applications

EDM Electrodes - Copper and graphite electrodes for aerospace/medical molds
3D Profiling - Complex contours in molds, dies, and prototypes
High-Speed CNC - Aluminum, brass, and soft alloy machining
Micro-Milling - Precision details (< 0.5mm tool diameters)
