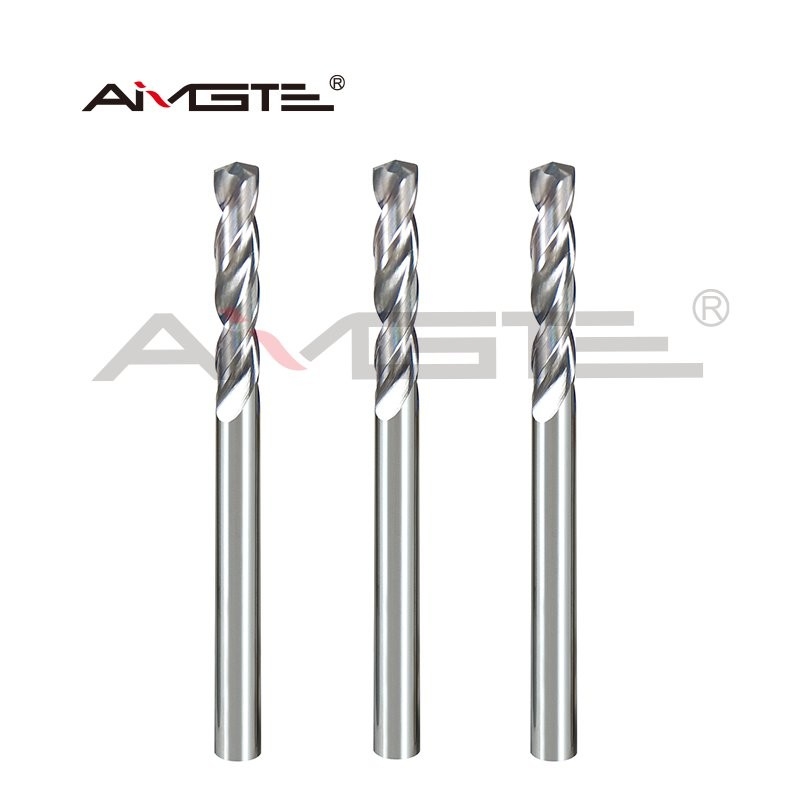

Uncoated Precision Carbide Drill Bits 1mm - 20mm For Aluminum

Brand Name:	AMG
Model Number:	DIN-3D
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Precision Carbide Drill Bits

Point Angle:

135° (for Aluminium)

Material:

Solid Carbide

Diameter:

1-32mm

Overall Length:

50-400mm

Helix:

30–35° (optimized Chip Flow)

OEM/ODM:

Available

Application:

Brass, Aluminium. Cast Iron, Steel, Inconel, Etc

Coating:

TiAlCrN, Nano-TiXCo, AlTiSiN, Etc.

Supply Ability:

30000-100000pcs per month

Highlight:

Aluminum Carbide Drill Bits

Uncoated Carbide Drill Bits

Product Description

Uncoated Precision Carbide Drill Bits 1mm - 20mm For Aluminum

Product Specifications

Product name	Precision Carbide Drill Bits
Point angle	135° (for aluminium)
Material	Solid carbide
Diameter	1-32mm
Overall length	50-400mm
Helix	30–35° (optimized chip flow)
OEM/ODM	Available
Application	Brass, Aluminium, Cast iron, steel, inconel, etc
Coating	TiAlCrN, Nano-TiXCo, AlTiSiN, etc.

Product Description

Our uncoated tungsten carbide drill bit is specifically engineered for high-speed, precision drilling in aluminum and non-ferrous metals. Featuring a 135° point angle and ultra-sharp cutting edges, this drill delivers clean, burr-free holes with exceptional chip evacuation—perfect for CNC machining, aerospace components, and high-volume production.

The absence of coating ensures optimal cutting performance in sticky aluminum alloys, while the micro-grain carbide construction provides 3X longer life than standard HSS drills.

标签中，使用类选择器避免冲突。内容结构清晰，使用语义化的HTML元素和适当的间距，确保良好的视觉层次和可读性。

Flute dia (D)	Shank dia (d)	OAL(L)	Groov length (L2)	Max.depth of cutting (L1)	Shank length(LS)
3	6	62	20	14	36
3.25	6	62	20	14	36
3.3	6	62	20	14	36
3.4	6	62	20	14	36
3.5	6	62	20	14	36
3.7	6	62	20	14	36
4	6	66	24	17	36
4.2	6	66	24	17	36
4.3	6	66	24	17	36
4.5	6	66	24	17	36
4.65	6	66	24	17	36
4.8	6	66	28	20	36
5	6	66	28	20	36
5.1	6	66	28	20	36
5.2	6	66	28	20	36
5.5	6	66	28	20	36
5.55	6	66	28	20	36
5.8	6	66	28	20	36
6	6	66	28	20	36
6.1	8	79	34	24	36
6.2	8	79	34	24	36
6.3	8	79	34	24	36
6.5	8	79	34	24	36
6.6	8	79	34	24	36
6.8	8	79	34	24	36
6.9	8	79	34	24	36
7	8	79	34	24	36
7.1	8	79	41	29	36
7.4	8	79	41	29	36
7.5	8	79	41	29	36
7.8	8	79	41	29	36
8	8	79	41	29	36
8.1	10	89	47	35	40
8.4	10	89	47	35	40
8.5	10	89	47	35	40
8.6	10	89	47	35	40
8.7	10	89	47	35	40
8.8	10	89	47	35	40
9	10	89	47	35	40
9.3	10	89	47	35	40
9.5	10	89	47	35	40
9.6	10	89	47	35	40
9.8	10	89	47	35	40
10	10	89	47	35	40
10.25	12	102	55	40	45
10.4	12	102	55	40	45
10.5	12	102	55	40	45
10.6	12	102	55	40	45
10.8	12	102	55	40	45
11	12	102	55	40	45
11.2	12	102	55	40	45
11.5	12	102	55	40	45
11.8	12	102	55	40	45
12	12	102	55	40	45
12.25	14	107	60	43	45
12.5	14	107	60	43	45
12.7	14	107	60	43	45
12.75	14	107	60	43	45
12.8	14	107	60	43	45
13	14	107	60	43	45
13.1	14	107	60	43	45
13.5	14	107	60	43	45
13.8	14	107	60	43	45
14	14	107	60	43	45
14.25	16	115	65	45	48
14.5	16	115	65	45	48
14.75	16	115	65	45	48
14.8
