High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile

Brand Name: AMG
MOQ: 3-10PCS
Packaging Details: Plastic tube
Payment Terms: T/T/Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Carbide Thread Milling Cutter
Material:
Grade K30 Carbide (10% Cobalt)
Application:
Aluminium, Cast Iron, Steel, Inconel 718, Titanium, Etc
Coating:
Uncoated/TiAlN/AlCrN (3-5μm)
Shank:
Cylindrical (Weldon Flat Optional)
Thread Range:
M4-M20 (custom UN/UNC/NPT Available)
Supply Ability:
30000-100000pcs per month
Highlight:

M20 CNC Mill Tool

,

M4 CNC Mill Tool

,

Full Profile CNC Mill Tool

Product Description
High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile
Product Specifications
Attribute Value
Product name Carbide Thread Milling Cutter
Material Grade K30 carbide (10% cobalt)
Application Aluminium, cast iron, steel, Inconel 718, titanium, etc
Coating Uncoated/TiAlN/AlCrN (3-5μm)
Shank Cylindrical (Weldon flat optional)
Thread range M4-M20 (custom UN/UNC/NPT available)
Product Overview

Our full-profile carbide thread mill is engineered for high-speed, precision threading in steel, stainless steel, and titanium alloys. Featuring a TiCN-coated, ultra-fine grain carbide design, this tool cuts complete ISO metric threads (M4-M20) with ±0.01mm tolerance, enabling left- and right-hand internal/external threads in a single operation.

Key Features
  • Full Profile Geometry - Cuts 100% thread form in one pass (ISO/DIN compliant)
  • TiCN Coating - 3X longer life vs. uncoated tools (resists 750°C heat)
  • Left/Right Hand Compatible - One tool for all thread directions
  • High-Speed Optimized - Up to 30 m/min cutting speed in steel
  • Precision Ground - <0.005mm runout for burr-free threads (ISO 2B/3B class)
  • Through-Coolant Ready - Optional internal coolant channels (M6+ sizes)
Performance Advantages
  • 50% Faster - Than tapping (no torque-induced breakage)
  • Versatile - Cuts internal/external, blind/through holes
  • Reduced Tool Inventory - Replaces multiple taps/dies
  • Superior Finish - Ra <0.8μm (minimizes post-processing)
  • Hard Material Capable - HRC 50+ hardened steels, Inconel 718

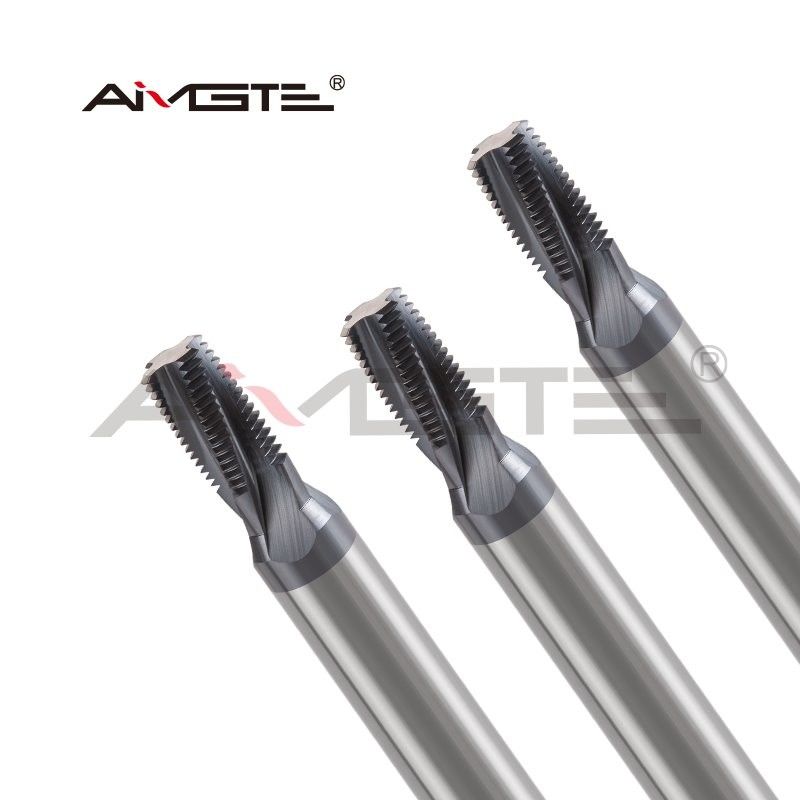

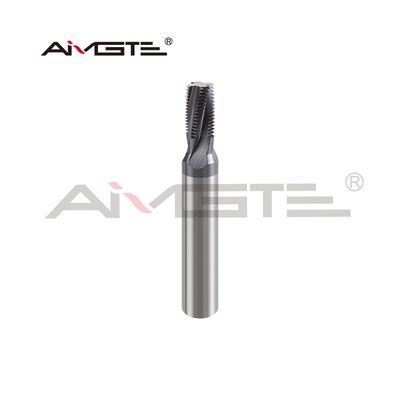

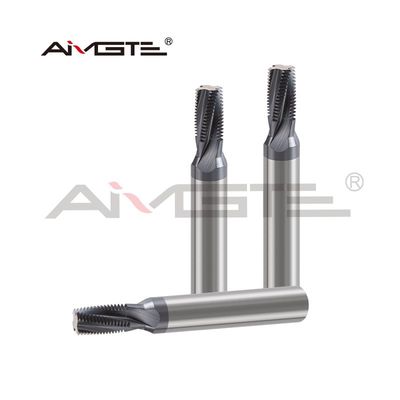

Product Images
High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile 0
Manufacturing Facility
High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile 1 High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile 2
New Customer Special Offers

Free Test Samples
Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.

$50 USD Discount on First Order
New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!

Our Manufacturing Advantages
Advanced Grinding Machines
All of our grinding machines are WALTER and SAACKE brands
Precision Inspection Equipment
ZOLLER, OMEGA, PG1000 for inspecting each carbide tool
Responsive Support
24-hour online service with fast feedback
Strict Quality Control
Three-stage inspection process for every tool
Related Products

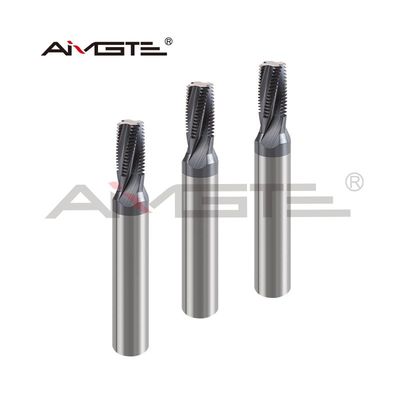

High Speed Carbide Thread Milling Cutter M4 - M20 CNC Mill Tool Full Profile 3
