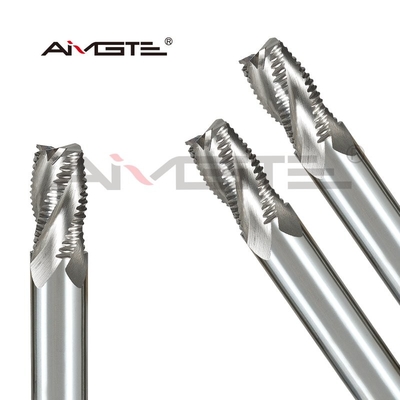

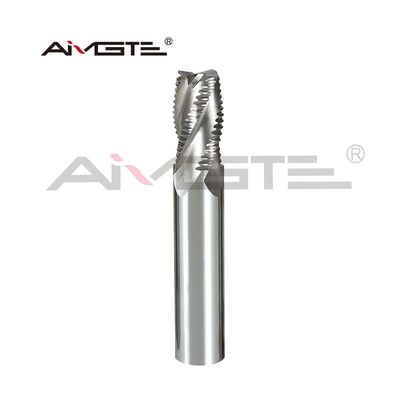

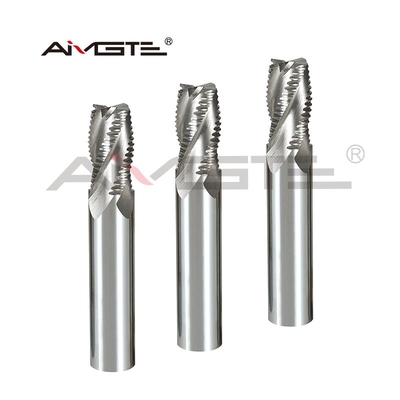

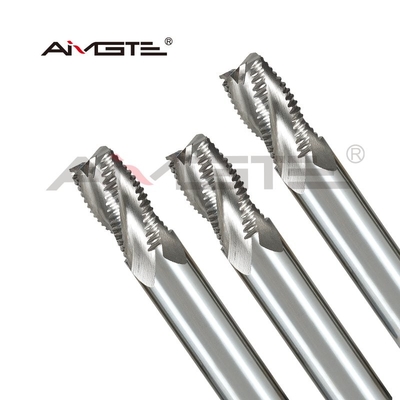

4 Flute Carbide Roughing End Mill High Feed Serrated End Mill h6 For Steel / Stainless

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Carbide Roughing End Mill

Material:

Grade K30 Carbide (10% Cobalt)/customized

Application:

Aluminium, Cast Iron, Steel, Inconel 718, Titanium, Etc

Coating:

TiAlN Standard (AlCrN For Nickel Alloys)

Shank:

Cylindrical (Weldon Flat Optional)

Precision:

Supply Ability:

30000-100000pcs per month

Highlight:

High Feed Carbide Roughing Endmill

Serrated Carbide Roughing End Mill

Stainless Carbide Roughing End Mill

Product Description

4 Flute Carbide Roughing End Mill High Feed Serrated End Mill h6 For Steel / Stainless

Product Specifications

Product name	Carbide Roughing End Mill
Material	Grade K30 carbide (10% cobalt)/customized
Application	Aluminium, cast iron, steel, Inconel 718, titanium, etc
Coating	TiAlN standard (AlCrN for nickel alloys)
Shank	Cylindrical (Weldon flat optional)
Precision	h6

Product Overview

Our 4-flute carbide roughing end mill features an aggressive serrated edge design for high-efficiency material removal in steel (HRC 50+), stainless steel, and alloy metals. Engineered with ultra-fine grain tungsten carbide and optimized chip breakers, this industrial-grade rougher delivers 40% faster metal removal while reducing vibration and power consumption — perfect for heavy-duty CNC milling in mold, aerospace, and general engineering applications.

Key Features

4-Flute Serrated Edge - Breaks chips into small segments for easy evacuation.
High Feed Design - Enables 0.3-0.8mm/tooth feed rates (2X standard end mills).
Solid Carbide Construction - 5X longer life than HSS roughers.
TiAlN/AlCrN Coating - Optional for heat resistance (up to 900°C).
Variable Helix (35°/40°) - Eliminates harmonic vibration.
Precision Ground - <0.01mm runout for stable performance.
Size Range - 6mm-20mm (1/4" to 3/4"), custom lengths available.

Performance Advantages

✓ 50% Faster Roughing - Removes more material per pass.

✓ Reduced Machine Load - Lower cutting forces protect spindles.

✓ Smoother Finishes - Ra 1.6-3.2 μm achievable (minimizes semi-finishing).

✓ Deep Cut Capable - Stable at up to 1.5xD axial depth.

✓ Through-Coolant Ready - Internal channels (M10+ sizes).

Recommended Applications

Ideal for CNC milling operations in mold making, aerospace components, general engineering applications, and heavy-duty machining of steel, stainless steel, and high-temperature alloys.
