AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel

Brand Name: AMG
MOQ: 3-10PCS
Packaging Details: Plastic tube
Payment Terms: T/T/Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Tungsten Carbide End Mill
Material:
Tungsten Carbide
Application:
P20/H13/D2 Steel
Coating:
AlTiN (3μm) / TiSiN (optional)
Oem:
Yes
Flute Length:
Varies By Size
Size:
Various Sizes Available
Flute Count:
Multiple
Supply Ability:
30000-100000pcs per month
Highlight:

D2 Steel Tungsten Carbide Endmill

,

Tungsten Carbide Endmill P20/H13

,

AlTiSiN Coating Tungsten Carbide Endmill

Product Description
AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel
Attribute Value
Product name Tungsten Carbide End Mill
Material Tungsten carbide
Application P20/H13/D2 Steel
Coating AlTiN (3μm) / TiSiN (optional)
Oem Yes
Flute Length Varies by size
Size Various sizes available
Flute Count Multiple
High-Precision Profile Machining Solution

Our AlTiSiN-coated carbide forming tool is engineered for high-precision profile machining in hardened tool steels. Combining ultra-fine grain tungsten carbide substrate with advanced AlTiSiN nanocomposite coating, this tool delivers 3-5X longer tool life versus conventional TiN-coated tools while maintaining ±0.01mm profile accuracy in demanding die/mold applications.

Key Features
  • Advanced Coating Technology: AlTiSiN nanocomposite coating with 3,500 HV hardness and 1,100°C thermal stability, oxidation-resistant for dry machining capability
  • Premium Carbide Substrate: Micro-grain WC-Co (6% cobalt) for shock resistance with 4,200 MPa transverse rupture strength and ground cutting edges (Ra 0.2μm edge finish)
  • Precision Geometry: Profile radius range 0.1-12mm (custom profiles available) with positive rake design to reduce cutting forces and multi-layer coating (3μm base + 2μm top layer)
  • Machine Compatibility: Works with CNC milling machines (40+ HRC), lathes with C-axis (for complex contours), and EDM-compatible versions available
Performance Advantages
68% Longer Tool Life vs standard TiAlN in H13 (HRC 52)
30% Higher Feed Rates achievable in P20 mold steel
Superior Surface Finish (Ra 0.4-0.8μm) reduces polishing time
Consistent Performance maintains ±0.005mm tolerance over 500+ cycles
Applications
  • Injection Mold Manufacturing: Core/cavity profiling in P20 (HRC 30-36), ejector pin grooves in H13 (HRC 48-52)
  • Stamping Die Production: Blanking punch contours in D2 (HRC 58-60), progressive die form features
  • Precision Engineering: Turbine blade root forms in 17-4PH stainless, medical implant profile finishing
Product Images

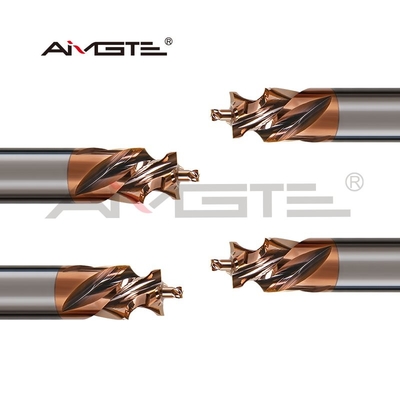

AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel 0
Manufacturing Facility

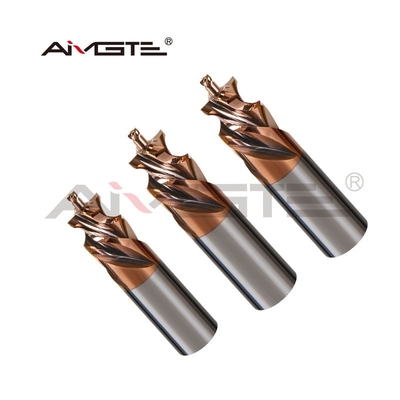

AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel 1

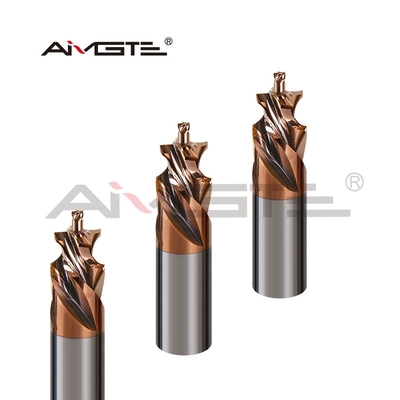

AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel 2
New Customer Special Offers
Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.

$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!

Our Manufacturing Advantages
  • Advanced grinding machines from WALTER and SAACKE brands
  • Precision inspection equipment including ZOLLER, OMEGA, and PG1000 systems
  • 24-hour online support with fast response times
  • Three-stage quality control process: raw material inspection, semi-finished product inspection, and final pre-shipment check
Related Products

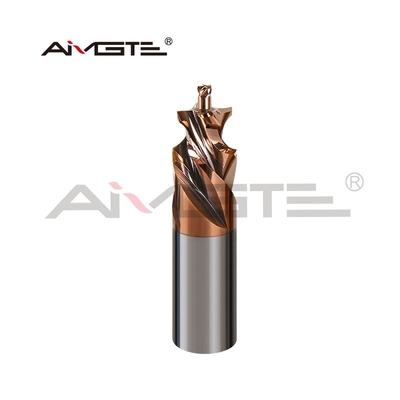

AlTiSiN Coating Tungsten Carbide End Mill 0.1mm - 12mm Carbide Form Tools For P20/H13/D2 Steel 3
