Carbide Drill Bit

AlTiCrN Carbide Drill Bit 1mm – 20mm CNC Drill Bit With R Edge

All Category

Carbide Boring Tool

Ms. Niki

niki@carbide-drill.com

+86 17368153006

AMG-TOOLS

Contact Now

AlTiCrN Carbide Drill Bit 1mm – 20mm CNC Drill Bit With R Edge

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Carbide Drill Bit

Application:

Aluminium, Cast Iron, Steel, Inconel 718, Titanium, Etc

Diameter Range:

1mm – 20mm (Standard & Custom Sizes)

Point Angle:

118 Or 135 Degrees

Material:

Grade K25 Carbide

Supply Ability:

30000-100000pcs per month

Highlight:

1mm Carbide Drill Bit

20mm Carbide Drill Bit

R Edge Carbide Drill Bit

Product Description

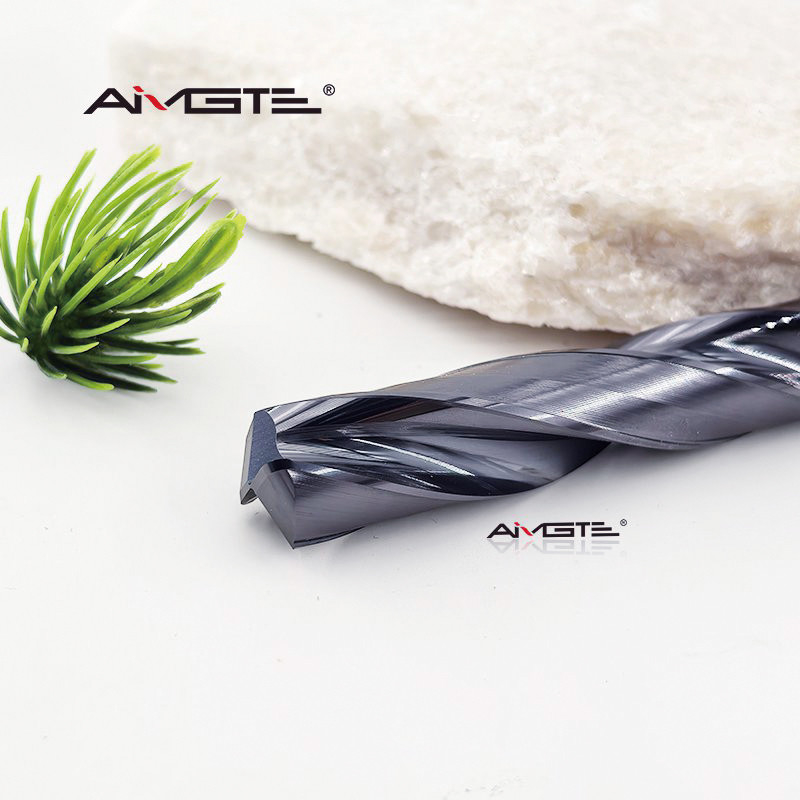

AlTiCrN Carbide Drill Bit 1mm – 20mm CNC Drill Bit With R Edge

Product name	Carbide Drill Bit
Application	Aluminium, cast iron, steel, Inconel 718, titanium, etc
Diameter Range	1mm – 20mm (Standard & Custom Sizes)
Point Angle	118 or 135 degrees
Material	Grade K25 carbide

Premium AlTiCrN Carbide Drill Bit with R Edge for CNC Machining

This high-performance cutting tool features tungsten carbide construction with advanced AlTiCrN coating, designed for machining hard and abrasive materials. The R-edge design enhances strength and reduces chipping for vibration-free drilling in demanding applications.

Key Features

AlTiCrN Coating: Withstands temperatures up to 1100°C, offering 3X longer tool life compared to uncoated or TiN-coated drills
Solid Tungsten Carbide: Superior hardness and wear resistance for machining tough materials without deflection
Optimized 2-Flute Design: Ensures efficient chip removal and prevents clogging
R-Edge Technology: Reinforces cutting edge, reducing micro-chipping and improving stability
High-Speed CNC Compatible: Precision-ground for excellent concentricity at high RPMs
Coolant-Ready: Compatible with high-pressure coolant systems (optional through-coolant models available)

Applications
