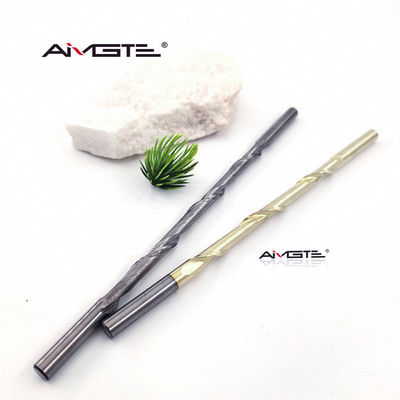

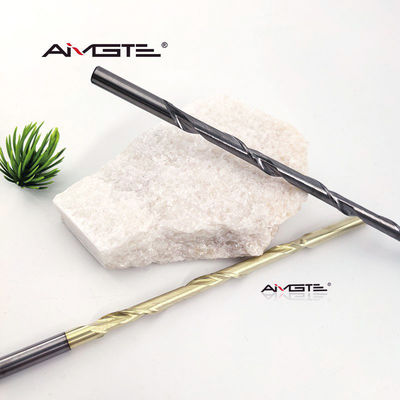

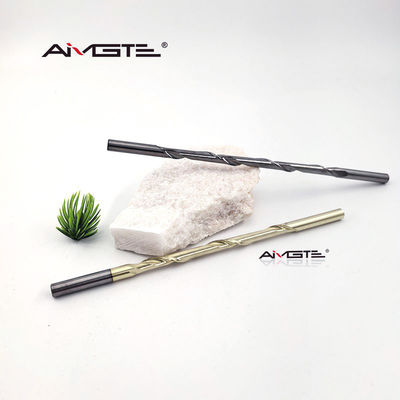

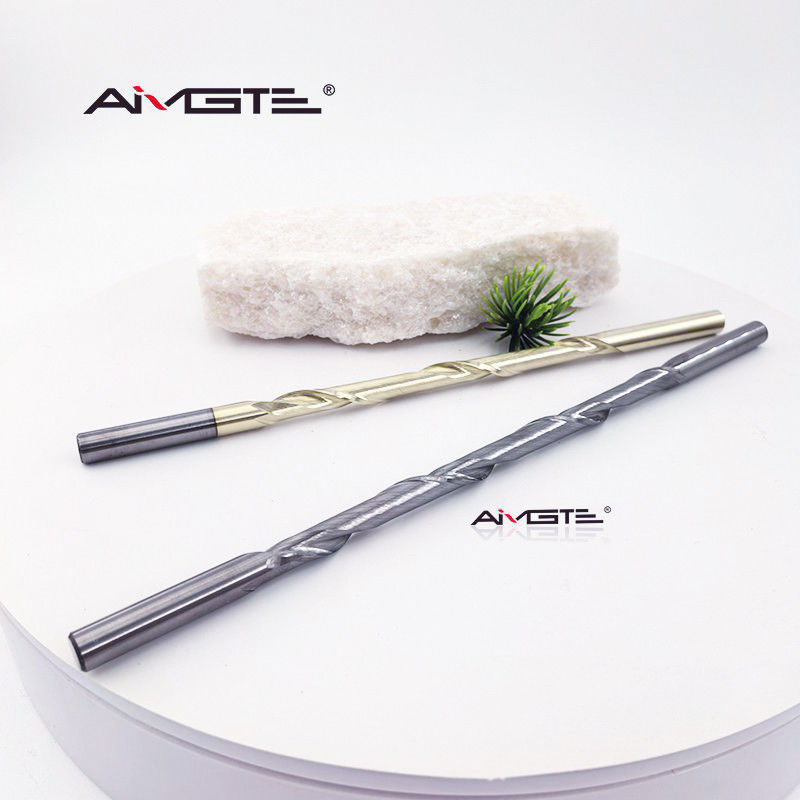

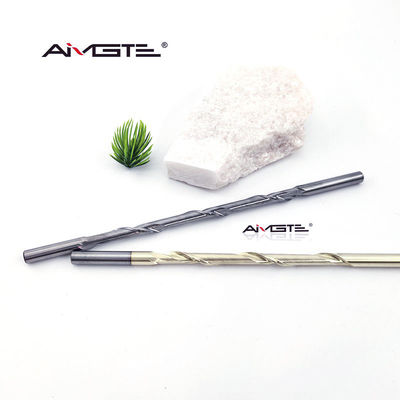

Double Ended Wood Cutting Bit Uncoated CNC Router Bits For Wood

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Wood Cutting Bit

Cutting Diameter:

3mm - 12mm (standard)

Cutting Length:

30mm - 100mm

Coating:

Uncoated

Application:

Acrylic, PVC, MDF, Aluminium

Shank Precision:

Tolerance:

0/-0.02mm

Service:

OEM/ODM

Supply Ability:

30000-100000pcs per month

Highlight:

Double Ended CNC Router Bits

Uncoated CNC Router Bits

Wood CNC Router Bits

Product Description

Double Ended Wood Cutting Bit Uncoated CNC Router Bits For Wood

Name	Wood Cutting Bit
Cutting Diameter	3mm - 12mm (standard)
Cutting Length	30mm - 100mm
Coating	Uncoated
Application	Acrylic, PVC, MDF, aluminium
Shank precision	h6
Tolerance	0/-0.02mm
Service	OEM/ODM

Tungsten Carbide Double Ended Solid Wood Cutting Bit

The Tungsten Carbide Double-Ended CNC Router Bit is a professional-grade cutting tool designed for high-efficiency woodworking on solid wood, plywood, MDF, and composite materials. Featuring a unique double-ended design with a single spiral flute, this bit delivers twice the cutting life of standard router bits while maintaining precision in deep-cut applications.

The extra-long reach (up to 100mm) allows for deep profile work in furniture making, cabinetry, and artistic carving. Made from premium YG8 tungsten carbide, it offers superior wear resistance and durability for industrial CNC routers and handheld machines.

Key Features

Double-Ended Design - Two usable ends double tool life, reducing replacement costs
Single Flute Spiral Geometry - Efficient chip evacuation prevents clogging in deep cuts
Extra-Long Cutting Length - 30mm-100mm reach for deep grooves, 3D carving, and panel processing
Industrial Tungsten Carbide (YG8) - 5X longer life than HSS, resists heat and abrasion
Precision Ground Edges - Razor-sharp cutting performance with minimal tear-out
Versatile Cutting Action - Available in up-cut, down-cut, or compression spiral variants
Balanced for High RPM - G2.5 dynamic balance reduces vibration at 18,000-24,000 RPM

Product Advantages

2X Tool Life - Double-ended design doubles usage before replacement
Deep Cutting Capacity - 100mm reach handles thick stock in one pass
Smooth Finish - Single flute reduces tear-out in hardwood and veneers
Faster Chip Removal - Spiral design prevents clogging in deep slots
CNC & Handheld Compatible - Works with shapers, routers, and CNC machines

Recommended Applications

Materials:

Hardwoods (oak, maple, walnut)
Softwoods (pine, cedar)
Engineered Wood (plywood, MDF, HDF)
Composite Panels (melamine, laminates)

Industries:

Furniture Manufacturing (table legs, chair frames)
Cabinet Making (door panels, drawer fronts)
