Custom End Mill

T Slot Tungsten Carbide Engraving Bit for Acrylic PS CNC Router Milling Cutter for Neon Sign Making

All Category

Carbide Boring Tool

Ms. Niki

niki@carbide-drill.com

+86 17368153006

AMG-TOOLS

Contact Now

T Slot Tungsten Carbide Engraving Bit for Acrylic PS CNC Router Milling Cutter for Neon Sign Making

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

T Slot Tungsten Carbide Engraving Bit For Acrylic PS CNC Router

Coating:

Uncoated/AlTiN/ZrN/CrN

Application:

Wood/MDF/Composite Material

Shank Precision:

Material:

Carbide

Inch Or Millimeter:

All Can Be Customized

Supply Ability:

30000-100000pcs per month

Highlight:

PS Tungsten Carbide Engraving Bit

T Slot custom end mill

Product Description

T Slot Tungsten Carbide Engraving Bit for Acrylic PS CNC Router Milling Cutter

Attribute	Value
Name	T Slot Tungsten Carbide Engraving Bit for Acrylic PS CNC Router
Coating	Uncoated/AlTiN/ZrN/CrN
Application	Wood/MDF/Composite material
Shank precision	h6
Material	Carbide
Inch Or Millimeter	All can be customized

Precision T-Slot Carbide Engraving Bit for Acrylic and Polystyrene

Our T-Slot Carbide Engraving Bit is engineered for precision machining of acrylic and polystyrene (PS), making it ideal for neon sign channels, light diffusers, and display fabrication. The sharp tungsten carbide tip and optimized flute geometry create clean, smooth T-slots with minimal chipping or melting, perfect for LED light installation and edge-lit signage production.

Key Features

Specialized T-Slot Geometry: Precision-ground carbide tip (30°-60° angles available) with up-cut spiral design for efficient chip removal and polished cutting edges to reduce friction heat.
Material-Specific Performance: Anti-melting design for acrylic/PMMA/PS with chip-breaker geometry to prevent material sticking and create mirror-finish slots (Ra 0.8μm) for optimal light diffusion.
CNC Router Optimized: 1/4" (6.35mm) shank fits most collets, recommended speed of 20,000-30,000 RPM, and dry cutting compatibility (air assist recommended).
Durable Construction: Micro-grain carbide (0.8μm) for extended tool life with anti-vibration balance for thin-material stability.

Typical Applications

Neon Sign Production: LED channel carving in 5-10mm acrylic and light diffusion slot milling
Display Manufacturing: Edge-lit sign T-slots and museum exhibit light guides
Advertising Industry: 3D letter backlight channels and point-of-purchase displays

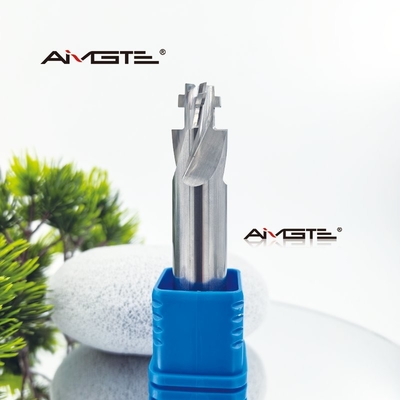

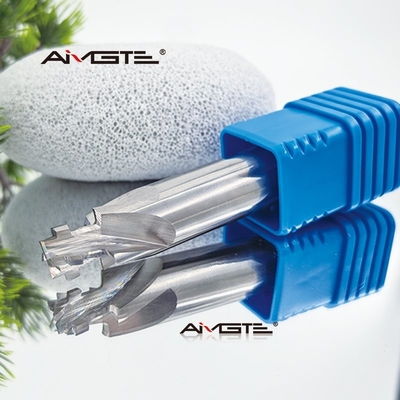

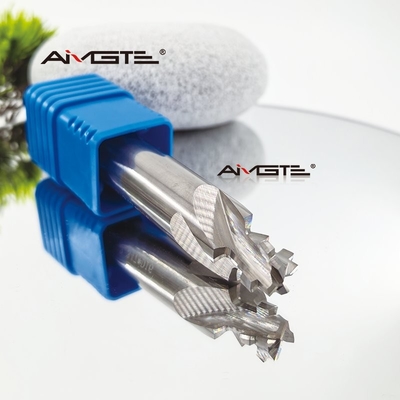

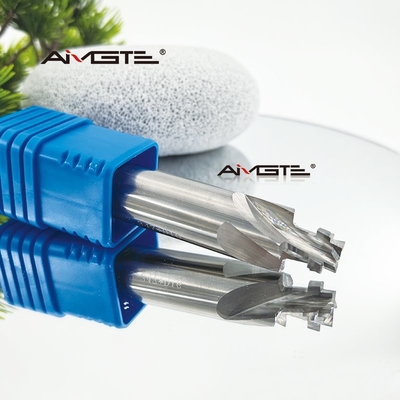

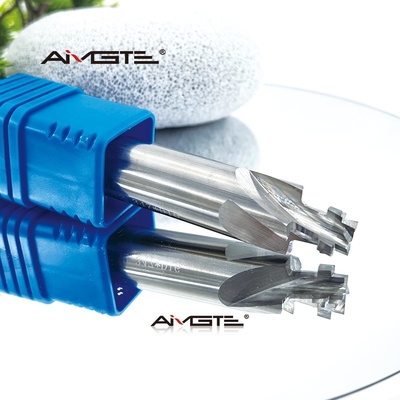

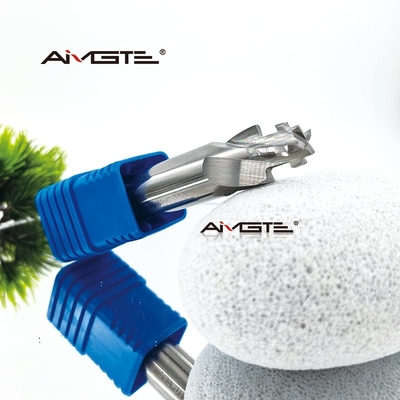

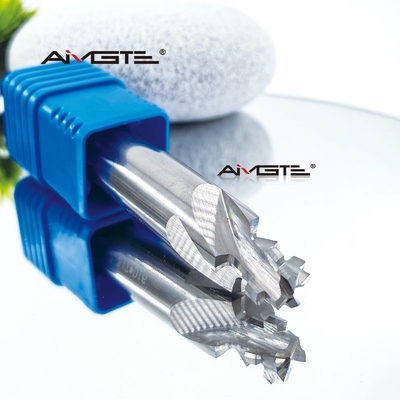

Product Images
