Tungsten Carbide Thread Forming Tap Fluteless Design For Steel Aluminum No Chip Production High Speed Machining

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Tungsten Carbide Thread Forming Tap Fluteless Design For Steel Aluminum

Size Range:

M3-M20 (UNC/UNF/Metric)

Application:

Aluminium, Cast Iron, Steel, Inconel 718, Titanium, Etc

Coating:

Uncoated/TiAlN/AlCrN (3-5μm)

Thread Length:

2.5xD (standard), 4xD (long)

Thread Range:

M4-M20 (custom UN/UNC/NPT Available)

Supply Ability:

30000-100000pcs per month

Highlight:

Fluteless Design Steel Tap

Aluminum No Chip Production Tap

Steel No Chip Production Tap

Product Description

Tungsten Carbide Thread Forming Tap Fluteless Design For Steel Aluminum No Chip Production High Speed Machining

Product Specifications

Product Name	Tungsten Carbide Thread Forming Tap Fluteless Design For Steel Aluminum
Size Range	M3-M20 (UNC/UNF/Metric)
Application	Aluminium, cast iron, steel, Inconel 718, titanium, etc
Coating	Uncoated/TiAlN/AlCrN (3-5μm)
Thread Length	2.5xD (standard), 4xD (long)
Thread Range	M4-M20 (custom UN/UNC/NPT available)

Product Overview

Our solid carbide thread forming tap revolutionizes internal threading with its fluteless design that eliminates chip production entirely. Engineered for high-speed CNC machining, this tap cold-forms threads through material displacement rather than cutting, delivering 3-5X longer tool life versus conventional cutting taps. Ideal for steel (up to HRC 45) and aluminum alloys, it produces stronger threads with superior surface finish (Ra 0.8μm) while preventing chip-related issues in blind holes.

Key Features

100% Tungsten Carbide Construction - YG6X micro-grain carbide (0.5μm, ISO K20) with no flutes/chip pockets to eliminate chip clogging
Optimized Forming Geometry - Point Style B (flat bottom) for blind holes, 2-3 lobe forming profile reduces torque by 30%
High-Speed Performance - 2-3X faster than cutting taps (up to 50m/min in Al), dry machining capable, balanced to G2.5
Material-Specific Designs - Special versions for steel (reduced forming pressure) and aluminum (polished surface treatment)

Performance Advantages

No Chip Management - Perfect for automated production

50,000+ Hole Life in 6061-T6 aluminum

30% Lower Torque vs standard form taps

Stronger Threads - Work hardening improves fatigue resistance

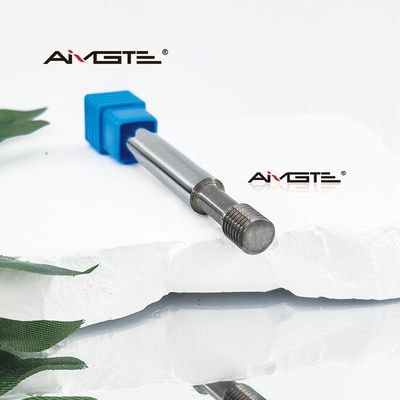

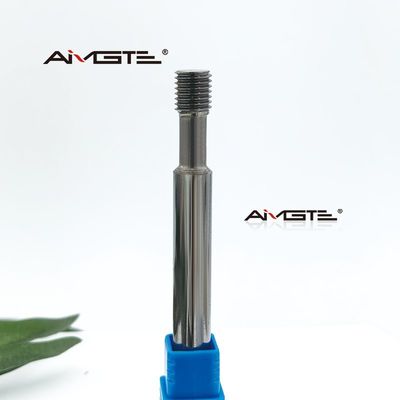

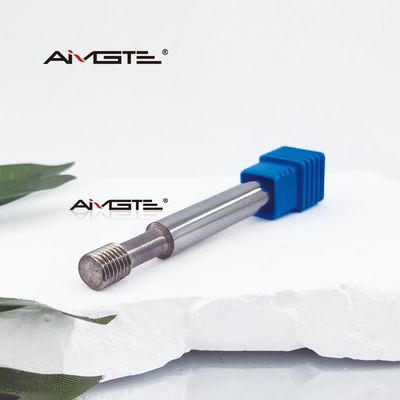

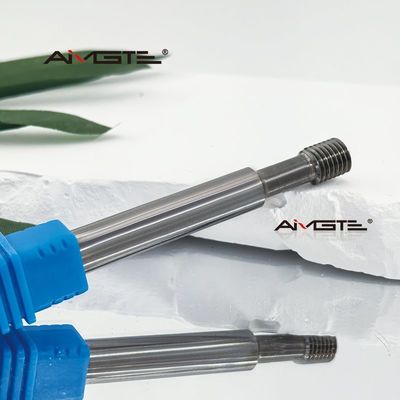

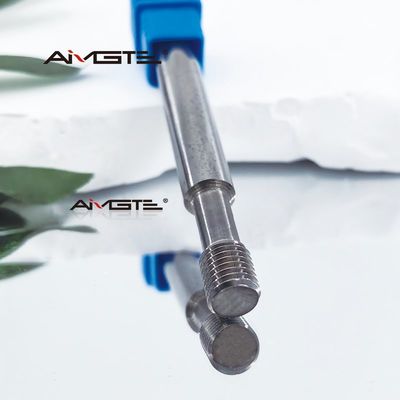

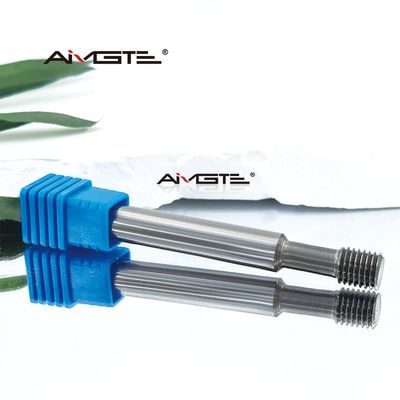

Product Images

Our Manufacturing Facility

Our Manufacturing Advantages

Advanced grinding machines: WALTER and SAACKE brands for precision tool production
Advanced inspection machines: ZOLLER, OMEGA, PG1000 for quality assurance
Fast feedback: 24 hours online service
Strict quality control: Three-stage inspection process for each tool
