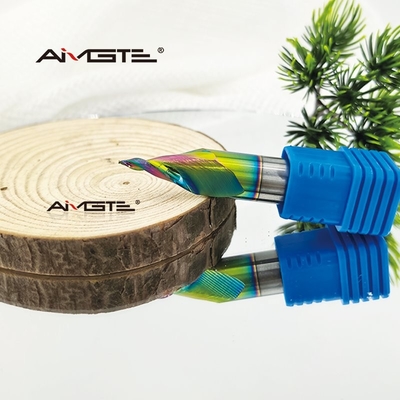

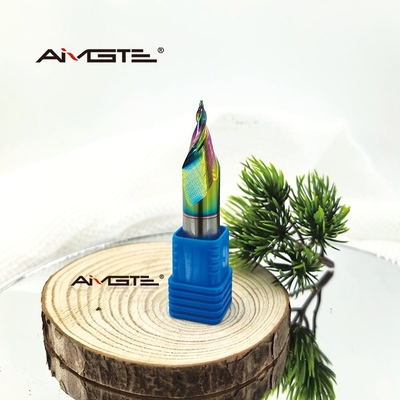

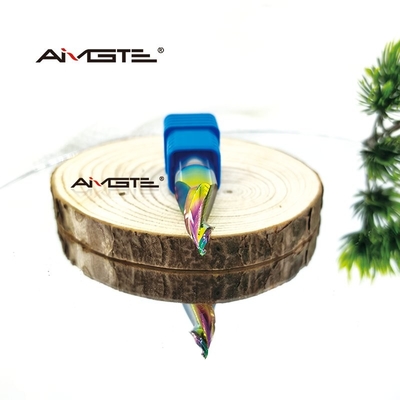

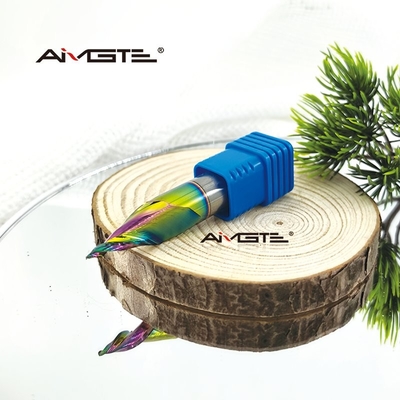

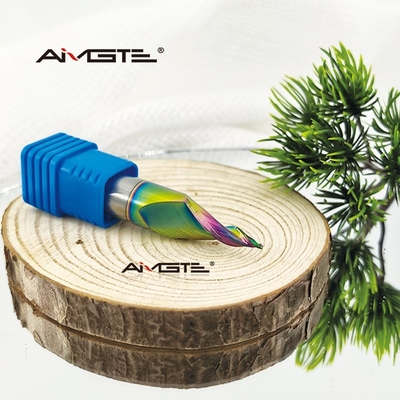

0.1mm Tip 2 Flute Carbide Tapered Engraving Cutter Micro CNC Engraver for Fine Lettering PCB

Brand Name: AMG
MOQ: 3-10PCS
Packaging Details: Plastic tube
Payment Terms: T/T/Credit Card
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Name:
0.1mm Tip 2 Flute Carbide Tapered Engraving Cutter
Number Of Flute:
1
Grain Size:
0.6μm Or 0.8μm
Coating:
DLC
Application:
Acrylic, PVC, MDF, Aluminium
Shank Precision:
H6
Tolerance:
0/-0.02mm
Service:
OEM/ODM
Supply Ability:
30000-100000pcs per month
Highlight:

PCB Tapered Engraving Cutter

,

0.1mm Engraving Cutter

,

0.1mm Carbide Tapered Engraving Cutter

Product Description
0.1mm Tip 2 Flute Carbide Tapered Engraving Cutter Micro CNC Engraver for Fine Lettering PCB
Attribute Value
Name 0.1mm Tip 2 Flute Carbide Tapered Engraving Cutter
Number of flute 1
Grain size 0.6μm or 0.8μm
Coating DLC
Application Acrylic, PVC, MDF, aluminium
Shank precision h6
Tolerance 0/-0.02mm
Service OEM/ODM
Precision Micro-Tool for Ultra-Fine Detailing

Our 0.1mm Tip 2-Flute Carbide Tapered Engraving Cutter is engineered for micro-engraving, precision PCB work, and fine detailing. Constructed from solid micro-grain tungsten carbide, this ultra-fine cutter maintains exceptional rigidity while delivering crisp, clean lines in delicate engraving applications.

Key Features
  • 0.1mm Ultra-Fine Tip - Enables hairline engraving (0.05mm line width achievable)
  • 2-Flute Tapered Geometry - Superior chip evacuation vs single-flute designs
  • Premium Micro-Grain Carbide - Japanese-grade substrate resists breakage
  • Multiple Taper Angles - 15° (extra fine), 30° (standard), 45° (durable)
  • Precision Ground Cutting Edges - ± 0.002mm runout for consistent performance
  • CNC & Manual Compatible - Works with high-speed spindles (60,000+ RPM)
Performance Advantages
Unmatched Precision - Sub-0.1mm detail resolution
Extended Tool Life - Carbide construction 5× more durable than HSS
Reduced Chip Clogging - 2-flute design clears micro chips effectively
Versatile Performance - From soft plastics to hardened steels
Anti-Vibration Design - Special neck geometry minimizes deflection
Recommended Applications
PCB Substrates (FR4, aluminum-backed)
Metals (aluminum, brass, stainless steel marking)
Acrylic and PVC engraving
MDF and wood micro-detailing
Jewelry manufacturing and precision marking
