Custom End Mill
>
16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish

Brand Name: AMG
MOQ: 3-10PCS
Payment Terms: T/T/Credit Card
Supply Ability: 30000-100000pcs per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Name:
16mm 4 Flute 45° Helix Angle Carbide End Mill Bits
Inch Or Millimeter:
All Can Be Customized
Type:
Finish Milling Cutter
Diameter:
1-20mm
Overall Length:
50-330mm
Suitable For:
Carbon Steel,Cooper, Carbon Steel, Mould Steel, Etc
Packaging Details:
Plastic tube
Supply Ability:
30000-100000pcs per month
Highlight:

CNC Milling Cutter for Steel

,

16mm CNC Milling Cutter

Product Description
16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish
Product Specifications
Attribute Value
Name 16mm 4 Flute 45° Helix Angle Carbide End Mill Bits
Inch Or Millimeter All can be customized
Type Finish milling cutter
Diameter 1-20mm
Overall length 50-330mm
Suitable for Carbon Steel, Copper, Carbon Steel, Mould Steel, etc
Product Description

Our 16mm 8-Flute Carbide Finishing End Mill is engineered for ultra-precise finishing operations in CNC machining. Designed with an optimized 45° helix angle and high-performance carbide substrate, this cutter delivers mirror-like surface finishes (Ra ≤ 0.4μm) on steel, aluminum, and alloys. Ideal for industrial applications demanding tight tolerances and smooth part aesthetics.

Key Features
1. Premium Carbide Construction
  • Material: Ultra-fine grain tungsten carbide (YG10X) for maximum wear resistance and edge retention.
  • Hardness: 92 HRA, ensuring longevity even in hardened steels (up to HRC 50).
2. 8-Flute Design for Finishing Excellence
  • High Flute Count: 8 flutes maximize surface contact for superior finish quality and reduced tool marks.
  • Balanced Cutting Forces: Minimizes vibration for chatter-free operation at high RPMs.
3. 45° Helix Angle Optimization
  • Smooth Chip Evacuation: Prevents chip re-cutting and workpiece damage.
  • Reduced Cutting Resistance: Lowers power consumption and extends tool life.
4. Advanced Coating Technology
  • TiAlN (Titanium Aluminum Nitride) Coating:
    • Increases heat resistance (up to 900°C).
    • Reduces friction by 25% vs. uncoated tools.
    • Extends tool life by 3X in abrasive materials.
5. Precision Engineering
  • Tolerance: ±0.008mm for critical tolerance applications.
  • Runout: <0.003mm ensures consistent finish quality.
  • Edge Prep: 20° rake angle for clean shearing in non-ferrous metals.
Performance Benefits
  • Mirror Finishes - Achieve Ra 0.2 -0.4μm surface roughness without secondary polishing.
  • High MRR (Material Removal Rate) - 8 flutes enable 20% faster finishing passes vs. 4-flute end mills.
  • Multi-Material Versatility - Optimized for:
    • Steel: AISI 1045, P20, H13 (HRC ≤50).
    • Aluminum: 6061, 7075 (no built-up edge).
    • Exotics: Titanium Grade 5, Inconel 718 (with reduced feeds).
  • Cost Efficiency - Replaces grinding/polishing steps in mold/die production.
Applications
  • Aerospace: Turbine blade finishing, structural components.
  • Automotive: Transmission housings, cylinder heads.
  • Mold & Die: Cavity polishing, EDM electrode machining.
  • General Engineering: Precision shafts, hydraulic components.
Product Images

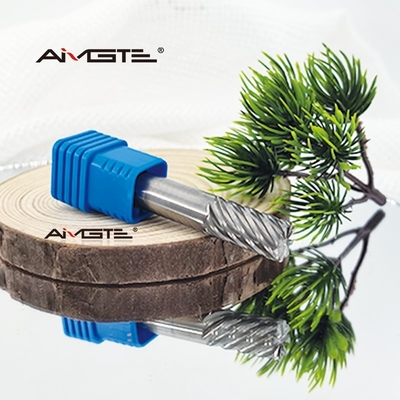

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish 0

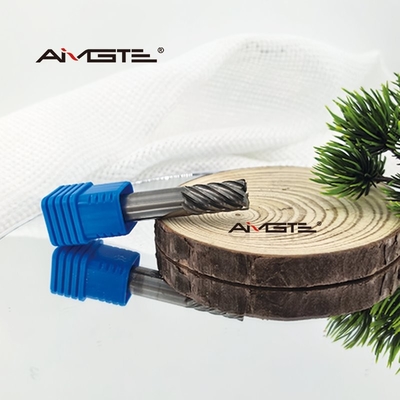

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish 1
Our Manufacturing Facility

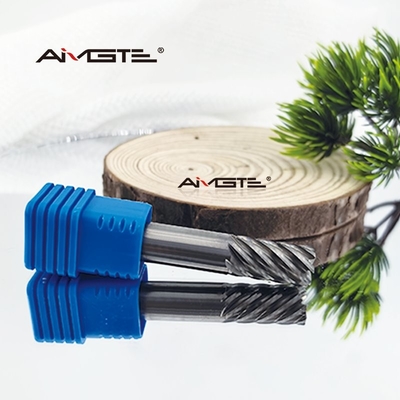

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish 2

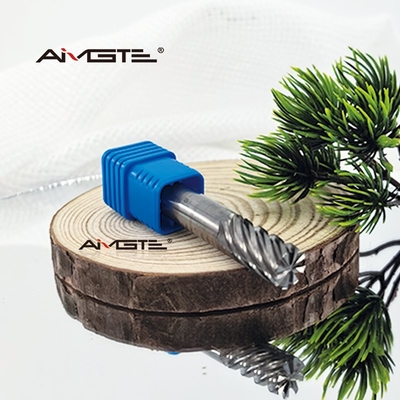

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish 3

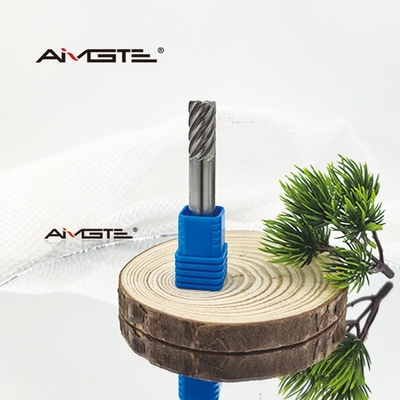

16mm 8 Flute Carbide Finishing End Mill High Precision CNC Milling Cutter for Steel Aluminum 45° Helix Angle Mirror Finish 4
Special Promotions for First-Time Buyers
  • Free Test Samples
    Get free samples (total value ≤ $20 USD) when you cover the international shipping cost. Perfect for evaluating our product quality and performance risk-free.
  • $50 USD Discount on First Order
    New customers can enjoy a $50 discount on the first order of $500 or more. A great way to start our partnership with extra value!
