Custom 3.7mm 4 Flute Carbide Flat End Mill Specialized for Steel Machining TiCN AlTiN Coating Options Available

Brand Name:	AMG
MOQ:	3-10PCS
Packaging Details:	Plastic tube
Payment Terms:	T/T/Credit Card

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Name:

Custom 3.7mm 4 Flute Carbide Flat End Mill

Inch Or Millimeter:

All Can Be Customized

Type:

Square End Mill

Diameter:

1-20mm

Overall Length:

50-330mm

Suitable For:

Steel, Stainless Steel, Mold Steel, Etc

Supply Ability:

30000-100000pcs per month

Highlight:

3.7mm Carbide Flat End Mill

Steel Machining Carbide Flat Endmill

Product Description

Custom 3.7mm 4 Flute Carbide Flat End Mill for Steel Machining

Attribute	Value
Name	Custom 3.7mm 4 Flute Carbide Flat End Mill
Inch Or Millimeter	All can be customized
Type	Square end mill
Diameter	1-20mm
Overall length	50-330mm
Suitable for	Steel, stainless steel, mold steel, etc

Precision Engineered for High-Performance Steel Machining

Our 3.7mm 4-flute carbide flat end mill is manufactured from ultra-fine grain tungsten carbide with optional TiCN or AlTiN coatings for exceptional durability in demanding CNC operations. The optimized 4-flute design balances material removal rate and surface finish quality, ideal for mold making, die manufacturing, and precision machining of steels up to HRC 55.

Key Features

Superior Tool Geometry: True 4-flute design with 30° helix angle, precision ground cutting edges (±0.005mm), and flat bottom design with <0.1mm corner radius
Advanced Material Technology: Sub-micron carbide substrate (0.5μm grain size) with TiCN or AlTiN coating options and polished flutes
Performance Advantages: 3-5× longer tool life vs HSS, 20% higher feed rates, superior surface finish (Ra 0.8μm), and reduced power consumption
Customization Options: Special diameters (3.5-4.0mm), various cutting lengths, multiple shank configurations, and special geometries

Applications

Mold & Die Industry: Precision cavities in P20, H13 mold steels, EDM electrode machining
Automotive Components: Transmission gear machining, engine block detailing
General Metalworking: Carbon steel fixture manufacturing, alloy steel prototype machining
Tool & Die Maintenance: Die repair and refurbishment, precision slot cutting

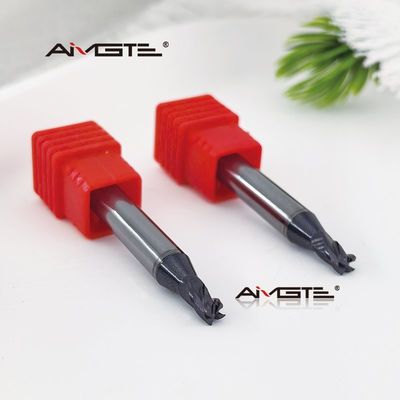

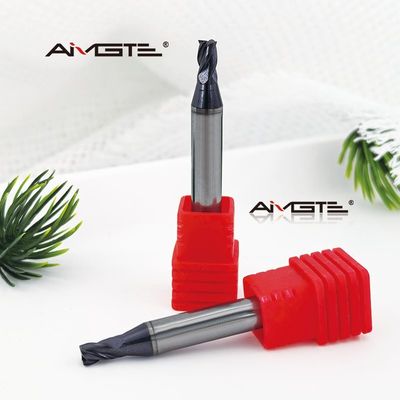

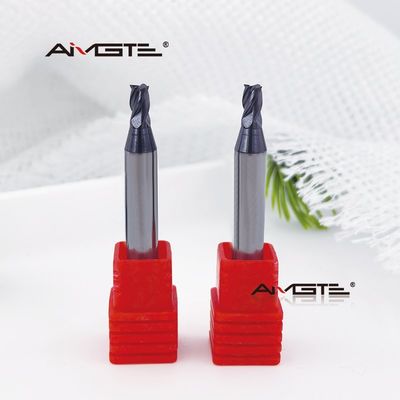

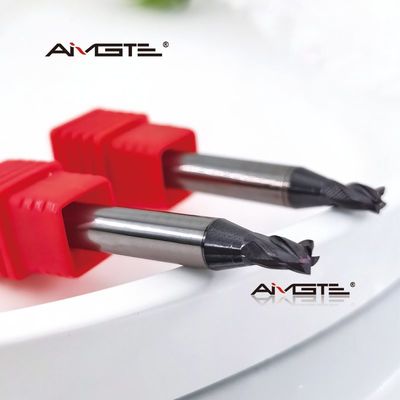

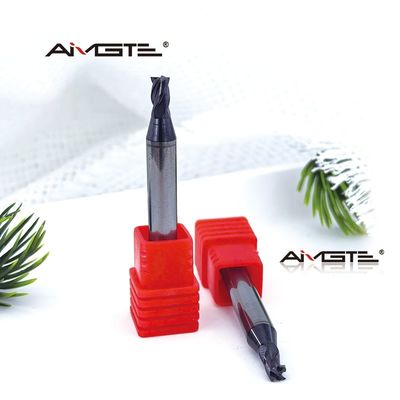

Product Images
