2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit with Internal Coolant Channels Precision Hole Making Tool

Brand Name:	AMG
Model Number:	DIN-5D
MOQ:	3-10PCS
Payment Terms:	T/T/Credit Card
Supply Ability:	30000-100000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

2 Flute Coolant Through Drill For Aluminum

Origin:

Jiangsu China

OEM/ODM:

Available

Cutting Direction:

Right Hand

Material:

Solid Carbide

Coating:

Uncoated

Diameter:

4-32mm

Overall Length:

50-400mm

Helix:

30°/customized

Coolant Method:

Inner Coolant

Packaging Details:

Plastic tube

Supply Ability:

30000-100000pcs per month

Highlight:

Precision Hole Making Tool

High Speed Carbide Drill Bit

Product Description

2 Flute Coolant Through Drill for Aluminum High Speed CNC Carbide Drill Bit

Product Specifications

Attribute	Value
Product name	2 Flute Coolant Through Drill for Aluminum
Origin	Jiangsu China
OEM/ODM	Available
Cutting direction	Right hand
Material	Solid carbide
Coating	Uncoated
Diameter	4-32mm
Overall length	50-400mm
Helix	30°/customized
Coolant method	Inner coolant

Product Overview

The 2 Flute Coolant Through Drill is a high-performance carbide drill bit specifically engineered for precision drilling in aluminum and non-ferrous metals. Featuring internal coolant channels and an optimized 2-flute design, this drill delivers exceptional chip evacuation, reduced heat buildup, and extended tool life in high-speed CNC machining applications.

Key Features

2-Flute Geometry - Provides excellent chip evacuation, preventing clogging in deep-hole drilling.
Internal Coolant Channels - Directs high-pressure coolant (up to 70 bar) to the cutting edge, reducing heat and extending tool life.
Carbide Substrate - Ultra-fine grain carbide ensures durability and wear resistance in high-speed operations.
Aluminum-Optimized Design - Special rake angle and polished flutes minimize material adhesion (BUE).
High-Speed Machining (HSM) Ready - Stable performance at 20,000+ RPM (varies by diameter).
Precision Ground Tip - Self-centering geometry for accurate hole positioning (±0.01mm tolerance).

Performance Advantages

3-5× Longer Tool Life - Carbide + coolant reduces wear vs. standard drills.
Faster Cycle Times - Optimized for high-speed peck drilling in aluminum (up to 3× faster than HSS).
Superior Hole Quality - Achieves IT8-IT9 tolerance with Ra 0.8-1.6μm surface finish.
Deep-Hole Capable - Stable performance up to 10× diameter depth (with coolant support).
Reduced Burrs - Sharp cutting edges produce cleaner hole exits.

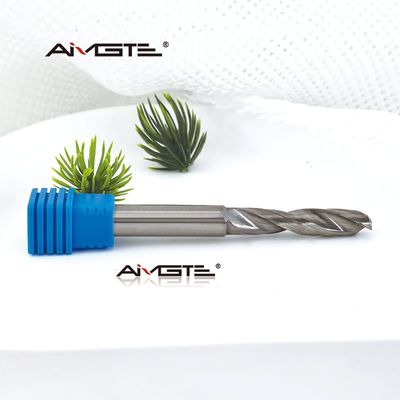

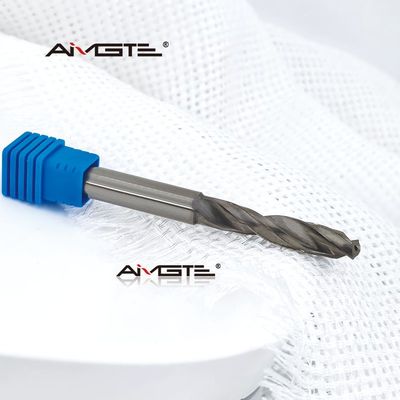

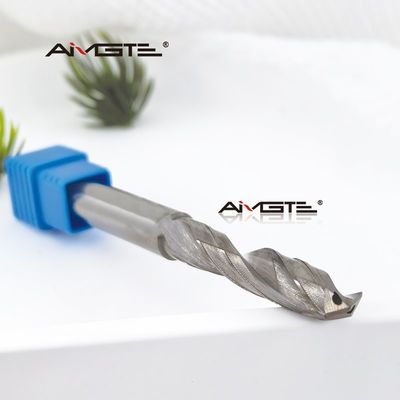

Product Images

Manufacturing Capabilities

Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.

Precision inspection equipment: We have ZOLLER, OMEGA, PG1000 for inspecting each carbide tool.

Custom design expertise: Specialized in producing complicated customized carbide tools with designs tailored to specific work pieces.

Facility Images
